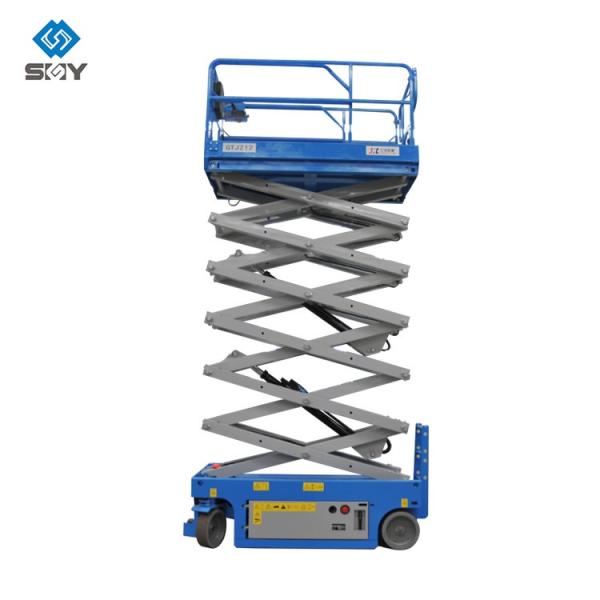

    EN280 Self Propelled Industrial Lifting Equipment Material Scissor Lift Platform

    Ask Lasest Price
    Brand Name : SGY
    Model Number : QYJZ
    Certification : CE ISO GOST SGS
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50000 sets per year
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    EN280 Self Propelled Industrial Lifting Equipment Material Scissor Lift Platform


    EN280 Self Propelled Industrial Lifting Equipment Material Scissor Lift Platform


    Self Propelled Industrial Lifting Equipment Brief Introduction

    The self-propelled scissor lift makes many difficult and dangerous tasks easier, such as: indoor and outdoor cleaning (ceiling, curtain wall, glass windows, eaves, canopy, chimney, etc.), installation and maintenance of billboards, street lights and traffic signs and maintenance. The characteristics of this high-altitude lifting platform are small and flexible, convenient and fast. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, you can also save your costs and precious time.


    Self Propelled Industrial Lifting Equipment Specification


    ModelGTJZ-6GTJZ-8GTJZ-10GTJZ-12
    Maximum Working Height6m8m10m12m
    Maximum Platform Height8m10m12m14m
    Safe Workload320kg320kg320kg320kg
    Working Platform Size
    (Length x Width x Height)
    2.26*1.132.26*1.132.26*1.132.26*1.13
    Overall Dimensions
    (Length × Width × Height)
    2.47*1.17*2.292.47*1.17*2.312.47*1.17*2.432.47*1.17*2.55
    Work Platform Extension Size0.9m0.9m0.9m0.9m
    Minimum Ground Clearance0.1/0.02m0.1/0.02m0.1/0.02m0.1/0.02m
    Wheelbase1.89m1.89m1.89m1.89m
    Driving/ Lifting Motor24V/3KW24V/3KW24V/3KW24V/3KW
    Lifting Speed3-5m/min3-5m/min3-5m/min3-5m/min

    Machine Travel Speed
    (Collapsed State)

    3.2km/h3.2km/h3.2km/h3.2km/h

    Machine Travel Speed
    (Lifting State)

    0.8km/h0.8km/h0.8km/h0.8km/h
    Battery4*6V/300ah4*6V/300ah4*6V/300ah4*6V/230ah
    Charger24V/20-30A24V/20-30A24V/20-30A24V/20-30A
    Gradeability25%25%25%25%
    Maximum Allowable Working Angle1.5°/3°1.5°/3°1.5°/3°1.5°/3°
    Total Weight1350kg1580kg2300kg2450kg

    Self Propelled Industrial Lifting Equipment Advantages and features


    1.Effective and energy-saving electric-drive system features zero emission and low noise.
    2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system meeting the customer needing for safety, reliability and intelligence.
    3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. “Zero Turning Radius ”is unique and enable machine to corner in narrow room.
    4.Maximum payload at 230kg, leading the industry.Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier.


    Self Propelled Industrial Lifting Equipment Main Features

    1. Safety certification
    Comply with European Union EN280 standard and obtain CE certification.

    2. Self propelled
    The self-propelled scissor lift has the function of automatic move, can move fast and slow under different moving conditions, only one person is required to operate the machine to complete the lifting, forwarding, backward, turning and other actions during the work at height. Compared with the traditional hydraulic platform, the work efficiency is greatly improved, and the number of operators and labor intensity are reduced. It is especially suitable for large-scale continuous high-altitude operations such as airport terminals, stations, docks, shopping malls, stadiums, residential properties, and factory workshops.

    3. Stepless speed change
    Only one person is required to operate, all movements are controlled by the operating handle on the worktable, and the motor is continuously variable. The service life of the battery and the motor is effectively extended, and the motor only consumes energy during operation.

    4. Extension platform
    The working platform can be removed, expanding the scope of work, and can meet the special needs of some users

    5. Green and environmental protection
    Because the machine uses DC battery power, the machine can be safely and quietly suitable for indoor or outdoor work.

    6. Safety devices
    Weight overload protection device; Top quality long time bearing polyurethane materials buffer; Lifting limit switch and traveling limit switch; Emergency stop system; Zero voltage protection; Phases protection device; High temperature resistance device (contact with us for more details.)teel Coil.

    7. Customized
    Design and manufacture according to your request.

    8. Package
    By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.

    Self Propelled Industrial Lifting Equipment Details
