Custom Wall Cantilever Jib Crane Pillar Jib Crane For Workshops

Product Introduction

The wall-traveling jib crane is a jib crane that can run along an elevated track on a wall or other supporting structure. The traveling track of the wall-traveling jib crane is installed on the concrete support column or steel support structural beam of the workshop/warehouse building. The jib crane can move longitudinally along the traveling. At the same time, the electric hoist can do the horizontal movement along the jib arm/cantilever and the vertical hoisting task.

The working strength of the cantilever crane is light. The crane is composed of a column, a slewing arm slewing drive device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts, and the cantilever rotation is driven by a cycloidal pinwheel reduction device. The I-beam runs in a straight line left and right, and lifts heavy objects.

The jib of the crane is a hollow steel structure, which is light in weight, large in span, large in lifting capacity, economical and durable. The built-in running mechanism adopts special engineering plastic running wheels with rolling bearings, which has low friction and light travel; small structure size is especially beneficial to improve the hook stroke.

Technical Details Sheet

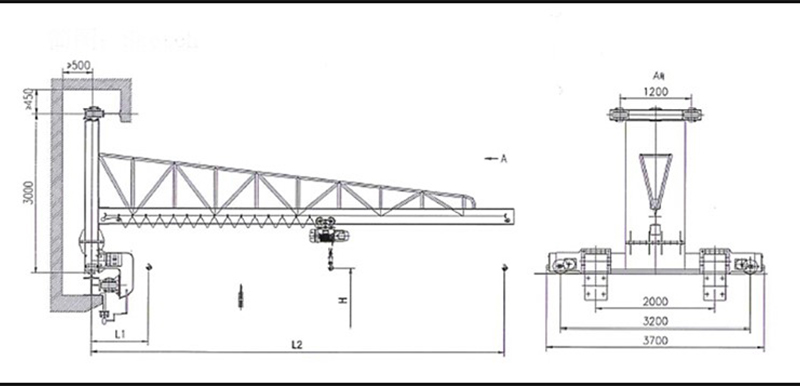

Product Sketch

Features

1. Wall Traveling Cantilever Jib Crane with Cantilever is a wall-traveling cantilevered boom arm,consist with support,jib device and electric hoist.

2. wall mounted jib crane offer 180 degree rotation and mount easily to any substantial structural steel building column, at any desired height.

3. Load: 0.25~5 tons;Working height: 2~ 10meters

4. Small Lifting Wall Mounted Jib Crane is widely used in workshops, warehouses, assembly line, docks ,storage and ports and etc.

5.It is wall mounted type especially applicable to short-distance, frequent and intensive hoisting operations, with such features as high efficiency, energy frugal, labor saving, occupying less space, easy operating and maintenance, etc.

6. Small Lifting Wall Mounted Jib Crane doesn't require modification of the building structure in which it is being installed and it doesn't take up much space, but it allows transporting goods on a three-dimensional plane.

Henan Yuntian Crane Co.,Ltd. located in crane hometown of China (cover more than 2/3 crane market in China), could supply you all kinds of industry cranes and other lifting equipment,more than 110 types, and capacity could be from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE, GOST, SGS, TUV, BV and so on.

Our Group have more than 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of RMB1.18 Billion, have more than 430 branches around the world and serving over 6,000 mid-to-high-end customers. more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, In order to manufacture out the best quality crane with high efficiency production, our group invest large number of high technique equipment (include more than 100sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment.

Meanwhile, we have one most experienced and professional team for oversea market, who are the earliest one to open the industry crane oversea market in China, now our team have been one famous leading flag for industry crane exporting in China, In addition, we could supply you the turn-key project includes installation, commissioning, training and so on.

We have exported our cranes to the Australia、Bangladesh、Iraq、Pakistan、Philippines、USA、Egypt、Peru、India、Turkmenistan、Singapore、Ethiopia、South Africa、Saudi Arabia、Malta、Albania、Ukraine、Vietnam、Kenya、Nigeria、UAE、Cameroon、Uruguay、Bahrain、Thailand、Kazakhstan、Germany、Sultan、Chile、Oman、Romania、Malaysia、Armenia、Jordan、Russia、Swaziland、Qatar、Brazil、Jordan、Columbia、Cameroon、Sri Lanka、Brunei、Indonesia and so on, total more than 100 countries, received good feedback from them, We will be very happy to make friends with you come from all of the world and hope to establish long-term good cooperation with each other.

Why Choose Us

We are differentiated by our established network of suppliers which allows us to be more cost effective. We provide a quality and reliable product and we are able to guarantee long term parts availability. With over 35 years of experience within the industry and act as the leader of the field for exporting, we have a following of loyal customers and offer personalised service. We have a huge and professional team working on exporting including sales team, technology team, document team, shipping team which will ensure provide a top service.

Key Highlights of our company:

1. ISO 9001:2015,CE,GOST,BV Approved Company

2. More than 3,500 sets of various advanced processing equipment (sets)

3. The Factory covers a total fabrication area of more than 1,620,000 Sq. Mtr

4. Total Manpower of more than 4500 employees

5. 420 service organizations around the world

6. Manufactures and installs more than 90000 sets complete cranes in 2020

7. A technical team composed of more than 200 senior engineers

8. Export to 120 countries around the world.
