    180 Degrees Rotation Wall Traveling Electric Jib Crane Cantilever

    Ask Lasest Price
    Brand Name : SGY
    Certification : CE
    Price : USD 5000
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    180 Degrees Rotation Wall Traveling Electric Jib Crane Cantilever

    180 Degrees Rotation Wall Traveling Electric Jib Crane Cantilever


    Information


    The working strength of the cantilever crane is light. The crane is composed of a column, a slewing arm slewing drive device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts, and the cantilever rotation is driven by a cycloidal pinwheel reduction device. The I-beam runs in a straight line left and right, and lifts heavy objects. The jib of the crane is a hollow steel structure, which is light in weight, large in span, large in lifting capacity, economical and durable. The built-in running mechanism adopts special engineering plastic running wheels with rolling bearings, which has low friction force and travels briskly; the structure size is small, which is especially beneficial to improve the hook stroke.


    Product Description


    1. Small Lifting Wall Mounted Jib Crane with Cantilever is a wall-mounted cantilevered boom arm,consist with support,jib device and electric hoist.

    2.wall mounted jib crane offer 180 degree rotation and mount easily to any substantial structural steel building column, at any desired height.

    3. Load: 0.25~5 tons;Working height: 2~ 10meters

    4. Small Lifting Wall Mounted Jib Crane is widely used in workshops, warehouses, assembly line, docks ,storage and ports and etc.

    5.It is wall mounted type especially applicable to short-distance, frequent and intensive hoisting operations, with such features as high efficiency, energy frugal, labor saving, occupying less space, easy operating and maintenance, etc.

    6. Small Lifting Wall Mounted Jib Crane doesn't require modification of the building structure in which it is being installed and it doesn't take up much space, but it allows transporting goods on a three-dimensional plane.


    Product Features


    -Small and medium-size lifting equipment,

    -Safe,reliable,high efficiency,energy-saving,time-saving,and labour-saving and flexible;

    -Electric or manual rotation,

    -It is superior in the cases of short distance,concentrated lifting,

    -It is simpler,cheaper than overhead crane or gantry crane with the same capacity.


    Technical Parameters


    Wall Type Jib Crane 0.5t

    lifting height h

    m

    5

    5.5

    6

    valid radius R

    m

    4

    4.5

    5

    lifting speed

    m/min

    8

    traveling speed

    m/min

    20

    slewing angle


    180°,270°,360°,any

    center height H1

    m

    1.6

    max. length L

    m

    4.43

    4.93

    5.43

    total weight

    kg

    389

    405

    420

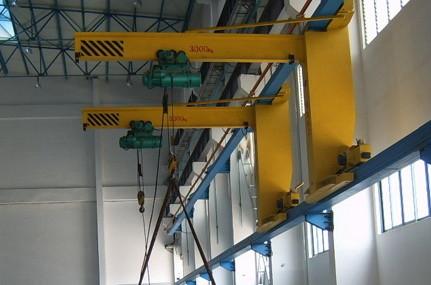

    Product Pictures


    Small Lifting Wall Mounted Jib Crane with Cantilever has the simple structure, convenient operation and light dead weight,

    so that it is applicable to operational site of medium and small light load such as factories and mines, workshops and warehouse.
