    Hand Pulled Small Tonnage Chain Electric Crane Hoist For Beam Crane

    Ask Lasest Price
    Brand Name : YT
    Model Number : Chain Hoist
    Certification : CE ISO
    Price : USD300-1000USD
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30000sets per year
    Delivery Time : 10-30work dyas
    • Product Details
    • Company Profile

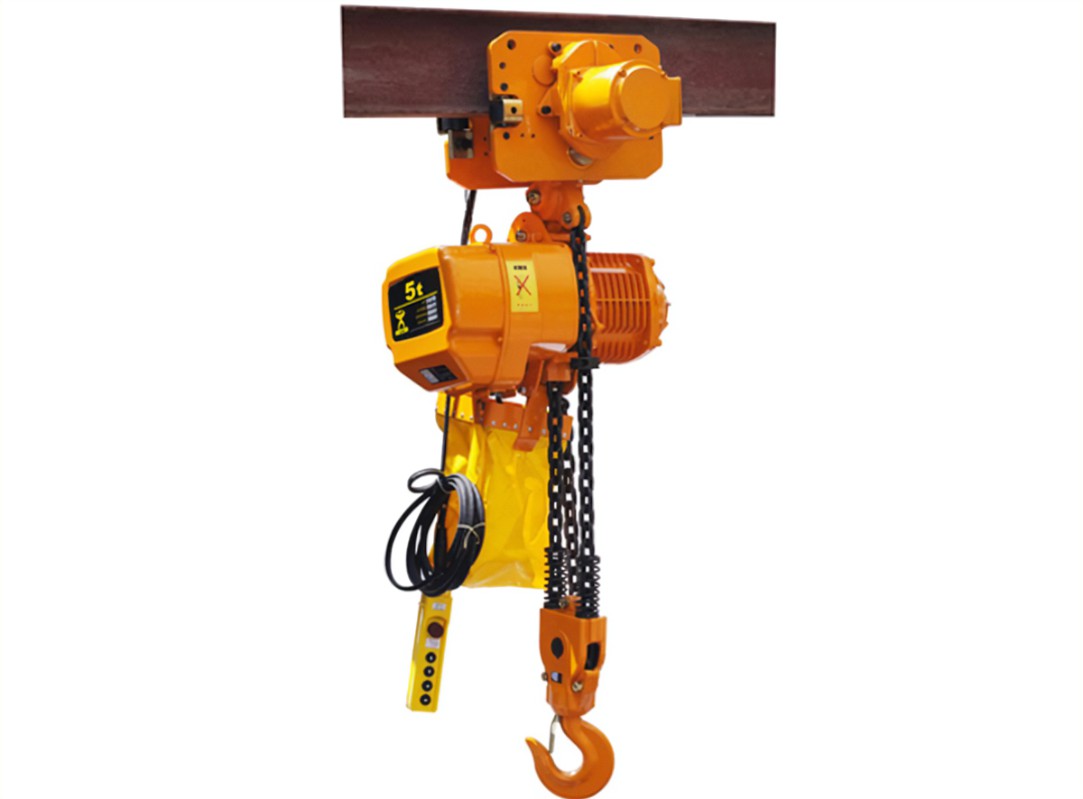

    Hand Pulled Small Tonnage Chain Electric Crane Hoist For Beam Crane

    Hand Pulled Small Tonnage Chain Electric Crane Hoist For Beam Crane


    Product Description


    The electric chain hoist is composed of a motor, a transmission mechanism and a sprocket. The difference from the electric wire rope hoist is that the wire rope is replaced by a chain. The lifting weight is generally 0.5 to 60 tons, and the lifting height is 3 to 120 meters.


    Technical Details Sheet


    Capacity
    (t)

    Model

    Lifting speed
    (m/min)

    Motor power
    (kw)

    Lifting height
    (m)

    Lifting rate

    Working duty FEM/ISO

    0.25

    NLG20250

    2.0/8.0

    0.09/0.36

    3~8

    1/1

    1Am/M4

    0.32

    NLG20320

    2.0/8.0

    0.18/0.75

    1/1

    3m/M6

    0.5

    NLG20500

    2.0/8.0

    0.18/0.75

    1/1

    1Am/M4

    0.63

    NLG20630

    2.5/10

    0.45/1.90

    2/1

    2m/M5

    1

    NLG31000

    2.5/10

    0.45/1.90

    1/1

    1Bm/M3

    1.5

    NLG31500

    1.25/5.0

    0.75/3.0

    1/1

    1Am/M4

    2

    NLG32000

    1.25/5.0

    0.45/1.90

    2/1

    1Am/M4

    2.5

    NLG32500

    1.25/5.0

    1.2/4.8

    1/1

    1Am/M4

    3

    NLG33000

    1.25/5.0

    0.75/3.0

    2/1

    1Am/M4

    5

    NLG35000

    1.25/5.0

    1.2/4.8

    2/1

    1Am/M4


    Product advantages


    • New simple design

    • Fully sealed body

    • New die cast aluminum housing

    • The device has light weight

    • High efficiency motor, high efficiency transmission

    • Maintenance-free design

    • Simple operation, light and practical

    • Service life is greatly improved

    • Safe and reliable, improve operation efficiency

    • High working effiency;

    • Smooth movement &comfortable operation;

    • Convenient maintenance & aesthetic painting;

    • Light deadweight, light wheel load and reliable performance;

    • Customized: design and manufacture according to your request.
