    MG Double Girder Gantry Crane A Frame For Ocean Transport

    Ask Lasest Price
    Brand Name : YT
    Model Number : MG
    Certification : CE ISO
    Price : USD15000-40000 per unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000sets per year
    Delivery Time : 30-60work dyas
    • Product Details
    • Company Profile

    MG Double Girder Gantry Crane A Frame For Ocean Transport

    MG Double Girder Gantry Crane A Frame For Ocean Transport


    Product Description


    MG type hook gantry crane is a double main girder universal gantry crane, also known as A type double girder gantry crane, which is composed of bridge frame, cart operating mechanism, trolley, electrical equipment and other parts. This crane is designed and manufactured according to GB/T14406-1993 "General Gantry Crane". The common lifting weight is 10-50t, and the working environment temperature is in the range of -20-+40℃.


    According to international standards,lifting tonnage of MG is divided into:5 tonnes,10 tonnes,16 tonnes(16/3.2),20 tonnes(20/5),32 tonnes(32/5),50 tonnes(50/10).We can also customize lifting tonnage according to customer requirements.


    Technical Details Sheet


    CapacityTon5~300
    Spanm12 〜35
    Lifting heightm6〜12
    Lifting speedm/min2~15
    Travelling speedm/min20~60
    Drive typeMotor driven for all motions
    Duty ClassA3~A6
    Power source380V; 50HZ, 3 phase (or other standard)
    Working temperature-20 〜40℃
    Control modelPendant pushbutton control or remote control or cabin control

    Product Configuration


    1. Double box beam with steel legs moving through the ground beam as crane travelling system

    2. The camber of main beam will be designed as Span*1-1.4/1000.

    3. Steel Material: Q235 or Q345

    4. Shot-blasting Sa2.5 for main girder and supporting beam

    5. Epoxy zinc rich high quality painting.

    6. Electrification and outfitting

    7. Brand: CHINT SIEMENS Schneider

    8. Conductor power supply: Cable Reel or busbar.

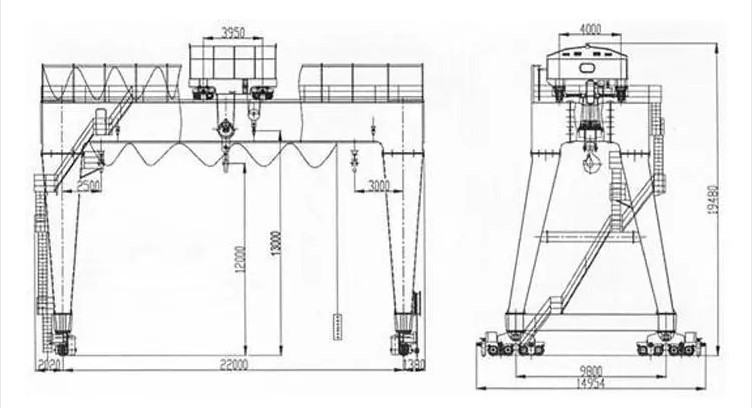

    Product Sketch

    Quality MG Double Girder Gantry Crane A Frame For Ocean Transport for sale
