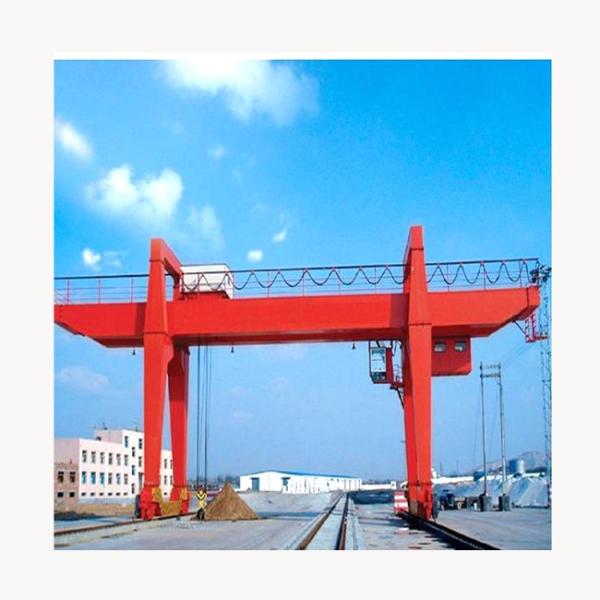

20 Ton U Type Double Girder Gantry Crane

Product Description:

U type double girder gantry crane mainly made up of bridge, trolley, crane traveling mechanism and electric system. The control method could be ground control, remote control, cabin control or both, in the cab there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air condition, acoustic alarm and interphone which can be furnished as required by users. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work. Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations.

U type double girder gantry crane is applied to general materials handing service in outdoor freight yard and along railway line , such as loading,unloading ,lifting and transferring work .As there is more space under legs of gantry crane , it’s fit for conveying larger products ,saddle support isn’t needed for U type gantry crane , So overall height of crane is reduced given certain lift height .

The U type double main girder hook gantry crane has two U-shaped outriggers.The crane is suitable for railway freight yards, ports, open-air warehouses, container transfer stations, etc. with large spans and frequent loading and unloading operations. The crane adopts a U-shaped gantry, and its over-leg clearance is large (nearly 7m), which is suitable for loading and unloading of long and heavy goods and containers. Due to the structural characteristics of the U-shaped door crane, the saddle frame is omitted, and the height of the whole machine is reduced under the condition of a certain lifting height.

U-shaped double main girder hook gantry crane has a rated lifting capacity of 5~500 tons; both sides of the crane can be equipped with cantilevers; large workload A5~A7 (ISO); special industry hooks can be grab buckets, magnets, lifting beams; environment Working temperature -40~50 degrees.

Selection Guide:

Henan Yuntian Crane Co.,Ltd. located in crane hometown of China (cover more than 2/3 crane market in China), could supply you all kinds of industry cranes and other lifting equipment,more than 110 types, and capacity could be from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE, GOST, SGS, TUV, BV and so on.

Our Group have more than 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of RMB1.18 Billion, have more than 430 branches around the world and serving over 6,000 mid-to-high-end customers. more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, In order to manufacture out the best quality crane with high efficiency production, our group invest large number of high technique equipment (include more than 100sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment.

Meanwhile, we have one most experienced and professional team for oversea market, who are the earliest one to open the industry crane oversea market in China, now our team have been one famous leading flag for industry crane exporting in China, In addition, we could supply you the turn-key project includes installation, commissioning, training and so on.

We have exported our cranes to the Australia、Bangladesh、Iraq、Pakistan、Philippines、USA、Egypt、Peru、India、Turkmenistan、Singapore、Ethiopia、South Africa、Saudi Arabia、Malta、Albania、Ukraine、Vietnam、Kenya、Nigeria、UAE、Cameroon、Uruguay、Bahrain、Thailand、Kazakhstan、Germany、Sultan、Chile、Oman、Romania、Malaysia、Armenia、Jordan、Russia、Swaziland、Qatar、Brazil、Jordan、Columbia、Cameroon、Sri Lanka、Brunei、Indonesia and so on, total more than 100 countries, received good feedback from them, We will be very happy to make friends with you come from all of the world and hope to establish long-term good cooperation with each other.

Why Choose Us

We are differentiated by our established network of suppliers which allows us to be more cost effective. We provide a quality and reliable product and we are able to guarantee long term parts availability. With over 35 years of experience within the industry and act as the leader of the field for exporting, we have a following of loyal customers and offer personalised service. We have a huge and professional team working on exporting including sales team, technology team, document team, shipping team which will ensure provide a top service.

Key Highlights of our company:

1. ISO 9001:2015,CE,GOST,BV Approved Company

2. More than 3,500 sets of various advanced processing equipment (sets)

3. The Factory covers a total fabrication area of more than 1,620,000 Sq. Mtr

4. Total Manpower of more than 4500 employees

5. 420 service organizations around the world

6. Manufactures and installs more than 90000 sets complete cranes in 2020

7. A technical team composed of more than 200 senior engineers

8. Export to 120 countries around the world.
