    Customize Steel Double Girder Gantry Crane With No Or Double Outer Cantilever

    Ask Lasest Price
    Brand Name : YT
    Model Number : MG
    Certification : CE ISO
    Price : USD15000-40000 per unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000sets per year
    Delivery Time : 30-60work dyas
    • Product Details
    • Company Profile

    Customize Steel Double Girder Gantry Crane With No Or Double Outer Cantilever

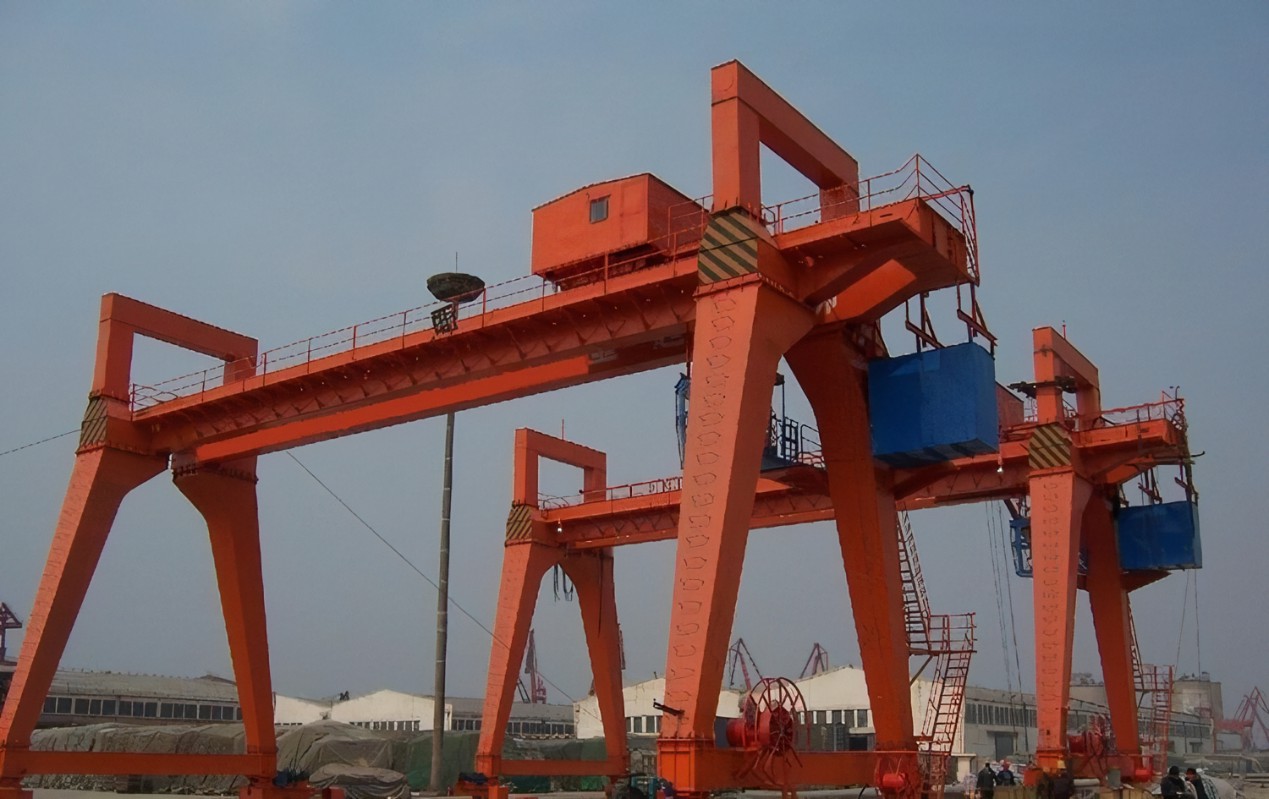

    No Or Double Outer Cantilever MG/A Type Double Girder Gantry Crane


    Product Description


    MG/A Type Double Beam Gantry Crane is suitable for general loading, unloading, lifting and handling in open cargo yard.Double girder gantry Crane is widely used together with winch or trolley for lifting device.

    The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport.


    Features:


    1, Trolley running mechanism and long travelling mechanism adopts three in one reducer, convenient maintenance.

    High wind alarm, anti - broken shaft, anti - tipping and other security measures are complete.

    2, It is a medium and heavy size crane which travels in track.
    3, Its proper lifting weight is 5 to 75 tons and proper span is 18 to 35 meters.
    4, Its proper working temperature is -20--+40 centigrade and with three working class: A5, A6, A7.

    5, Gantry crane has two control methods namely remote control and cabin control, or two control models together.

    6, Power is supplied by cable or slide wire.


    Product Configuration


    1.Double box beam with steel legs moving through the ground beam as crane travelling system

    2.The camber of main beam will be designed as Span*1-1.4/1000.

    3.Steel Material: Q235 or Q345

    4.Shot-blasting Sa2.5 for main girder and supporting beam

    5.Epoxy zinc rich high quality painting.

    6.Electrification and outfitting

    7.Brand: CHINT SIEMENS Schneider

    8.Conductor power supply: Cable Reel or busbar.


    Technical Details Sheet


    Capacity

    Ton

    5~300

    Span

    m

    12 〜35

    Lifting height

    m

    6〜12

    Lifting speed

    m/min

    2~15

    Travelling speed

    m/min

    20~60

    Drive type

    Motor driven for all motions

    Duty Class

    A3~A6

    Power source

    380V; 50HZ, 3 phase (or other standard)

    Working temperature

    -20 〜40℃

    Control model

    Pendant pushbutton control or remote control or cabin control


    Product Sketch
