QD Model Heavy Duty Double Beam Overhead Crane

QD Double Girder Overhead Crane Description

QD Double girder overhead crane is composed with girder frame, crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder. Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

This model overhead crane is designed under GB regulation, passed ISO, CE certification.
The crane lifting and travelling speeds are steady and accurate.
New design also makes the crane lifting higher.

QD Double Girder Overhead Crane Main Features

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;

QD Double Girder Overhead Crane Technical Parameter

This product is suitable for lifting, transporting and loading and unloading of various materials in workshops, freight yards and warehouses of railway stations, ports, industrial and mining enterprises and other departments.

QD Double Girder Overhead Crane Mechanism

1. High quality carbon steel Q235B and Q345B;

2. connected by high strength screws;
3. Welding seams are tested by X-ray and ultrasound;
4. Compact structure, small volume;
5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
6. Good operation performance, step less speed regulating and running smoothly;
7. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;

QD Double Girder Overhead Crane Electric System

1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;
Safety Protection Devices:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

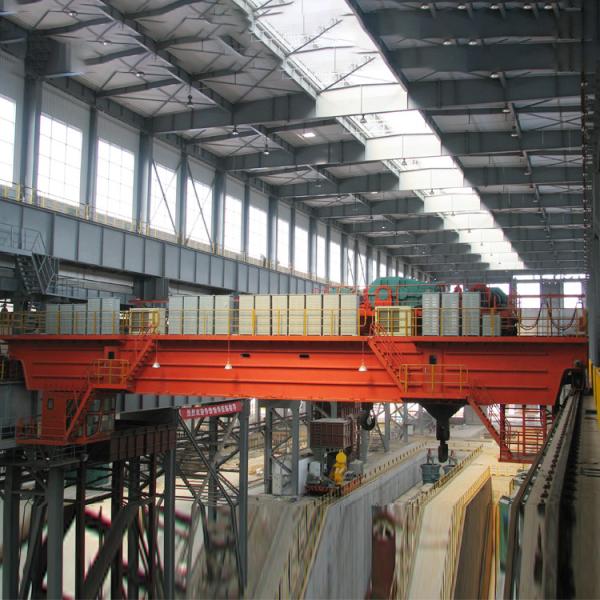

QD Double Girder Overhead Crane Images

Henan Yuntian Crane Co.,Ltd. located in crane hometown of China (cover more than 2/3 crane market in China), could supply you all kinds of industry cranes and other lifting equipment,more than 110 types, and capacity could be from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE, GOST, SGS, TUV, BV and so on.

Our Group have more than 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of RMB1.18 Billion, have more than 430 branches around the world and serving over 6,000 mid-to-high-end customers. more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, In order to manufacture out the best quality crane with high efficiency production, our group invest large number of high technique equipment (include more than 100sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment.

Meanwhile, we have one most experienced and professional team for oversea market, who are the earliest one to open the industry crane oversea market in China, now our team have been one famous leading flag for industry crane exporting in China, In addition, we could supply you the turn-key project includes installation, commissioning, training and so on.

We have exported our cranes to the Australia、Bangladesh、Iraq、Pakistan、Philippines、USA、Egypt、Peru、India、Turkmenistan、Singapore、Ethiopia、South Africa、Saudi Arabia、Malta、Albania、Ukraine、Vietnam、Kenya、Nigeria、UAE、Cameroon、Uruguay、Bahrain、Thailand、Kazakhstan、Germany、Sultan、Chile、Oman、Romania、Malaysia、Armenia、Jordan、Russia、Swaziland、Qatar、Brazil、Jordan、Columbia、Cameroon、Sri Lanka、Brunei、Indonesia and so on, total more than 100 countries, received good feedback from them, We will be very happy to make friends with you come from all of the world and hope to establish long-term good cooperation with each other.

Why Choose Us

We are differentiated by our established network of suppliers which allows us to be more cost effective. We provide a quality and reliable product and we are able to guarantee long term parts availability. With over 35 years of experience within the industry and act as the leader of the field for exporting, we have a following of loyal customers and offer personalised service. We have a huge and professional team working on exporting including sales team, technology team, document team, shipping team which will ensure provide a top service.

Key Highlights of our company:

1. ISO 9001:2015,CE,GOST,BV Approved Company

2. More than 3,500 sets of various advanced processing equipment (sets)

3. The Factory covers a total fabrication area of more than 1,620,000 Sq. Mtr

4. Total Manpower of more than 4500 employees

5. 420 service organizations around the world

6. Manufactures and installs more than 90000 sets complete cranes in 2020

7. A technical team composed of more than 200 senior engineers

8. Export to 120 countries around the world.
