    L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop

    Ask Lasest Price
    Brand Name : SGY
    Model Number : L
    Certification : CE ISO GOST, SGS, TUV, BV
    Price : USD5200.00-12000.00
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per year
    Delivery Time : Within 60days after deposit received.
    • Product Details
    • Company Profile

    L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop


    L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop


    L Type Single Beam Gantry Crane Description


    1.L singlebeam gantry crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system.
    2.The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when 2,the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.
    3.The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib.


    L Type Single Beam Gantry Crane Technical parameter


    Capacityt101620/1030/1036/1650/10
    Spanm18-3518-3018-3522-2626-3032
    DutymediummediummediummediumHeavyHeavy/medium
    lifting heightmainm11.512.510.511.511.512
    aux.//11121213
    speedhoistmainm/min18.412.39.210.410.46
    aux.//18.418.412.318
    traversing43.844.54441.95338.13
    travelling48.4-54.649.1-51.25151.251.143.8

    L Type Single Beam Gantry Crane Advantages


    1. Simple and compact structure, steady performance.
    2. Easy to install and high efficiency.
    3. Overload, low voltage protective device.
    4. Pendent control and remote control.
    5. Easy maintenance.

    6. Preventing hook clashing the top, set shields and barriers.
    7. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.
    8. Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
    9. Anti-collision, sound and light alarm devices. Equipped with rail clamp.

    L Type Single Beam Gantry Crane Main Features


    1. Light Duty and High Efficient, capable of passing legs.

    2. Suitable for handling long material;

    3. Long Life Span: 30-50years;

    4. Motor insulation: F class;

    5. Electric hoist is from our own group;

    6. The speeds could be frequency inverter speed control; PLC is adopted.

    7. Control method is cabin control, pendant control or remote control;

    8. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

    9. Protection: IP55.

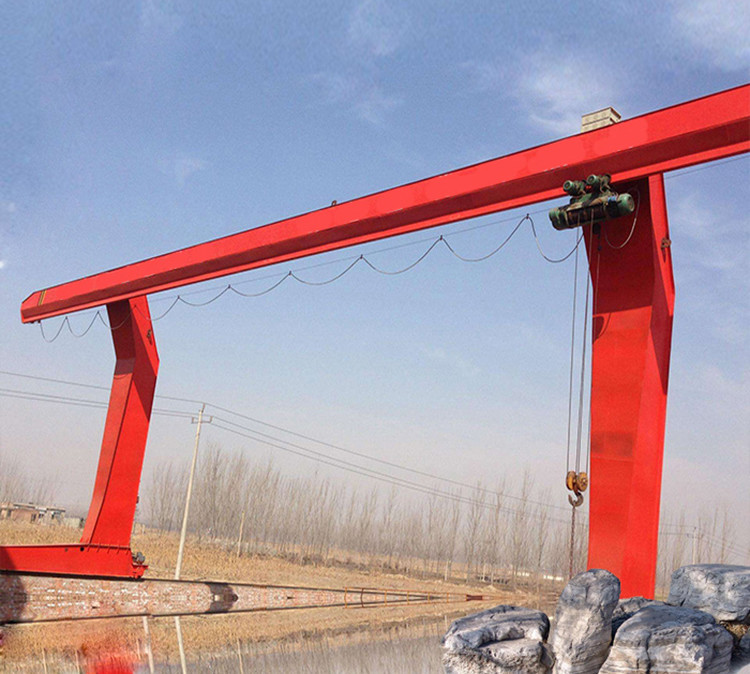

    L Type Single Beam Gantry Crane Images

    L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop

    L Type Single Girder Goliath Crane Outdoor Overhead Crane For Workshop
