    10 Ton MH Type Single Girder Gantry Crane Trussed Type

    Ask Lasest Price
    Brand Name : SGY
    Model Number : MH
    Certification : CE ISO GOST
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 sets per year
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    10 Ton MH Type Single Girder Gantry Crane Trussed Type


    10 Ton MH Type Single Girder Frame Gantry Crane ( Trussed Type )


    MH Type Single Girder Gantry Crane Brief Introduction


    MH type single girder gantry crane has Box Type and Trussed Type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non-cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.


    Trussed type single girder gantry crane is the best light crane, which is used both in multi-wind area and workshop for inside and outside. It is composed of metal structure, cart operating mechanism, electric device and trolley(electric hoist). The surface of facing wind is very small, because of its steel-pip leg, and is characterized in the light deadweight and strong hoisting capacity. It has ground-controlling and remote-controlling. Its proper lifting weight is 5 to 20 tons. Proper span is 12 to 30 meters, its proper working temperature is -20℃ to 40℃, and wind pressure is less than 125Pa.


    MH Type Single Girder Gantry Crane Parameter


    Capacityt35101620
    Spanm12,16,20,24,30
    Operational MethodPendent Line With Press Button /Cabin/ Remote

    Speed


    Liftingm/min8 ,8/0.88,8/0.87,7/0.73.53.5
    Cross Travelingm/min2020202020

    Long

    Traveling

    Groundm/min2020202020
    Cabinm/min20, 30,4520, 30,4030,4030,4030,40

    Motor


    LiftingType /kw

    ZD41-4/4.5

    ZDS1-4/0.4/4.5

    ZD141-4/7.5

    ZDS10.8/4.5

    ZD151-4/13

    ZDS11.5/4.5

    ZD151-4/13ZD152-4/18
    Cross TravelingModelZDY12-4/0.4ZDY121-4/0.8ZDY21-4/0.82ZDY121-4/0.82YZD-4/0.84

    Long

    Traveling

    GroundModel

    ZDY21-4/0.82

    ZDY21-4/1.52

    YZY22-4/1.52

    YZR132M2-6/3.72

    YZR22-4/1.52

    YZR160M1-6/6.32

    YZR160M2-6/8.52

    YZR160M1-6/6.32

    YZR160M2-6/8.52

    CabinModel

    ZDR100-4/1.52

    ZDR112-4/2.12

    YZR112L1-4/2.12

    YZR160M1-6/2.12

    YZR112L1-4/2.12

    YZR160M2

    YZR160M2-6/8.52

    YZR160L2-6/112

    YZR160M2-6/8.52

    YZR160L2-6/112

    Electric HoistModelCD1/MD1CD1/MD1CD1/MD1CD1HC
    Lifting Heightm6,9,12,18,24,30
    Working DutyModelA3
    Power SupplyModel380V 60HZ 3phase AC (According to your demand )

    MH model gantry Crane Advantages


    1. Simple and compact structure, steady performance.

    2. Easy to install and high efficiency.

    3. Overload, low voltage protective device.

    4. Pendent control and remote control.

    5. Easy maintenance.


    MH Type Single Girder Gantry Crane Main Features


    1. Reasonable structure, strong bearing capacity

    2. Low noise, soft starting and stopping

    3. Modular design: Hoisting mechanism; Pitching mechanism; Trolley traction mechanism; Trolley assembly module; Crane travelling mechanism; Steel structure module; Functional module; Common module and other modules.
    4. Advanced Manufacturing Technology.
    5. Reliability: Motors, reducers, electric components from well-known brand, and steel are from famous steel mills.
    6. Intelligence: Security System; Anti-swaying technology; Automate detecting failue; Real-time monitoring of skew travelling.

    7.Safety devices: Weight overload protection device; Top quality long time bearing polyurethane materials buffer; Lifting limit switch and traveling limit switch; Emergency stop system; Zero voltage protection; Phases protection device.

    8. Customized: design and manufacture according to your request.

    9. Package: By national station exporting standard plywood box, wooden pallet or in 20ft & 40ft container. Or as your demands.


    If you want to order this gantry crane, Pls tell me the details as follows


    1. The Max. lifting capacity? (Ton)
    2. The span of gantry crane?(the distance of rail to rail center)
    3. Do you need cantilevers at two beam ends? if it is, Pls mention the length per side.
    4. The Max. lifting height of hook? (or total height of crane)
    5. What type meterial will you to lift?
    6. The power source standard?(380V, 50Hz, 3phase or others)

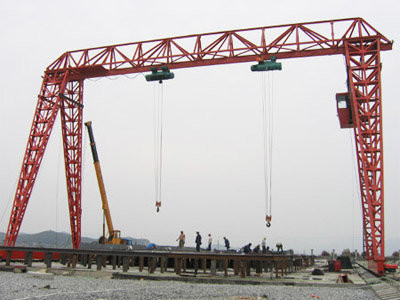

    MH Type Single Girder Gantry Crane Images


    10 Ton MH Type Single Girder Gantry Crane Trussed Type
