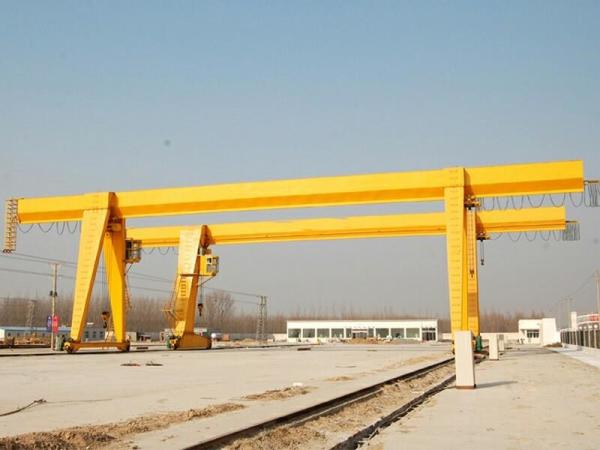

Box Type Cantilever Bridge Crane Single Girder 8 Ton Gantry Crane
Cantilever Gantry Crane Description
MH type electric hoist gantry crane is used in conjunction with CD
MD and other types of electric hoists. It is a small and
medium-sized rail-operated crane. Its suitable lifting weight is
3~20 tons, and its suitable span is 12~30 meters. The working
environment is -20 ℃ Within ~+40℃.
This product is a general-purpose crane, which is mostly used for
loading, unloading or grabbing materials in open spaces and
warehouses. This product has two types of ground control and indoor
control.
Cantilever Gantry Crane Technical Details
Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
Span | m | 12,16,20,24,30 | ||||||
Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
Long traveling | Ground | 20 | 20 | 20 | 20 | 20 | ||
Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | |||
Long traveling | Ground | ZDY21-4/0.82 ZDY21-4/1.52 | YZY22-4/1.52 YZR132M2-6/3.72 | YZR22-4/1.52 | YZR160M1-6/6.32 YZR160M2-6/8.52 | YZR160M1-6/6.32 YZR160M2-6/8.52 | ||
Cabin | ZDR100-4/1.52 ZDR112-4/2.12 | YZR112L1-4/2.12 YZR160M1-6/2.12 | YZR112L1-4/2.12 YZR160M2 | YZR160M2-6/8.52 YZR160L2-6/112 | YZR160M2-6/8.52 YZR160L2-6/112 | |||
Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
Lifting height | m | 6,9,12,18,24,30 | ||||||
Working duty | A3 | |||||||
Power supply | 380V 60HZ 3phase AC (According to your demand ) |
Single girder gantry crane type:
MH type single girder gantry crane is a general-purpose crane,
which is mostly used for loading and unloading or grabbing
materials in open spaces and warehouses. The styles of beam gantry
cranes include single-girder gantry cranes with boxes, flower frame
gantry cranes (truss gantry cranes), and upper and lower flower
gantry cranes.
Gantry Crane Features:
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof
and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging
beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit
and other standard safety devices, to promise crane work safe.
Safety Features of Our Gantry Cranes:
1. Crane traveling limit switch
2. Weight overload protection device
3. Lifting height limit device
4. Voltage lower protection function
5. Phase sequence protection function
6. Warning indicator: flashing lights and warning sound.
7. Emergency stop function
8. Rain cover for outside hoist, driving units, electrical cubicle.
9. Wireless infra-detector for anti-collusion
Product Sketch
![]() |
