    MH Type Cantilever Gantry Crane Single Beam Overhead Crane

    Ask Lasest Price
    Brand Name : YT
    Model Number : MH
    Certification : CE ISO
    Price : USD10000-30000 per unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000sets per year
    Delivery Time : 30-60work days
    • Product Details
    • Company Profile

    MH Type Cantilever Gantry Crane Single Beam Overhead Crane


    MH Type Cantilever Gantry Crane Single Beam Overhead Crane


    MH Type Cantilever Gantry Crane Description


    MH type single girder gantry with electric hoist is small-medium type lifting equipment which includes main girder, under the main girder there are outriggers and trolley running mechanism, which is used together with CD/MD electric hoist. MH gantry cranes are also available for jib and non-jib gantry cranes. If there is a cantilever, the crane can load the goods to the edge of the crane through the outrigger, which is very convenient and efficient. This product is a general-purpose crane, which is mostly used for loading, unloading and grabbing materials in open spaces and warehouses.


    MHLP type single girder gantry crane is Ltype partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.


    MH Type Cantilever Gantry Crane Technical Details


    Capacity

    T

    3

    5

    10

    16

    20

    Span

    m

    12,16,20,24,30

    Operational method


    Pendent Line With Press Button /Cabin/ Remote

    Speed

    Lifting

    m/min

    8 ,8/0.8

    8,8/0.8

    7,7/0.7

    3.5

    3.5


    Cross traveling


    20

    20

    20

    20

    20


    Long traveling

    Ground


    20

    20

    20

    20

    20



    Cabin


    20, 30,45

    20, 30,40

    30,40

    30,40

    30,40

    Motor

    Lifting

    Type /kw

    ZD41-4/4.5

    ZDS1-4/0.4/4.5

    ZD141-4/7.5 ZDS10.8/4.5

    ZD151-4/13 ZDS11.5/4.5

    ZD151-4/13

    ZD152-4/18


    Cross traveling


    ZDY12-4/0.4

    ZDY121-4/0.8

    ZDY21-4/0.82

    ZDY121-4/0.82

    YZD-4/0.84


    Long traveling

    Ground


    ZDY21-4/0.82

    ZDY21-4/1.52

    YZY22-4/1.52

    YZR132M2-6/3.72

    YZR22-4/1.52

    YZR160M1-6/6.32

    YZR160M2-6/8.52

    YZR160M1-6/6.32

    YZR160M2-6/8.52



    Cabin


    ZDR100-4/1.52

    ZDR112-4/2.12

    YZR112L1-4/2.12

    YZR160M1-6/2.12

    YZR112L1-4/2.12

    YZR160M2

    YZR160M2-6/8.52

    YZR160L2-6/112

    YZR160M2-6/8.52

    YZR160L2-6/112

    Electric hoist

    Model

    CD1/MD1

    CD1/MD1

    CD1/MD1

    CD1

    HC

    Lifting height

    m

    6,9,12,18,24,30

    Working duty


    A3

    Power supply


    380V 60HZ 3phase AC (According to your demand )


    MH Type Cantilever Gantry Crane Safety Features


    1. Crane traveling limit switch

    2. Weight overload protection device

    3. Lifting height limit device

    4. Voltage lower protection function

    5. Phase sequence protection function

    6. Warning indicator: flashing lights and warning sound.

    7. Emergency stop function

    8. Rain cover for outside hoist, driving units, electrical cubicle.

    9. Wireless infra-detector for anti-collusion

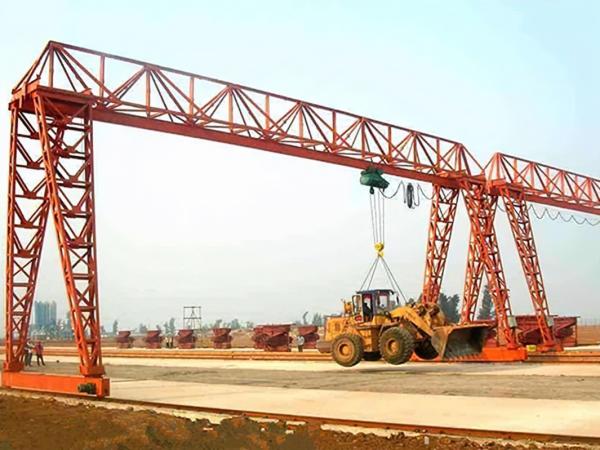

    MH Type Cantilever Gantry Crane Photos
