    European Industrial 1000KN Double Girder EOT Crane 10.5 - 31.5m Span

    Ask Lasest Price
    Brand Name : YT
    Model Number : LDC
    Certification : CE GOST ISO
    Price : USD 25000-30000
    Payment Terms : T/T, L/C
    Supply Ability : 1000 Set/Sets per Year
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    European Industrial 1000KN Double Girder EOT Crane 10.5 - 31.5m Span


    European Industrial 1000KN Double Girder EOT Crane 10.5 - 31.5m Span

    European Standard Double Girder Overhead Crane Description

    KSSL European style double girder overhead crane is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder.Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.

    The crane is heavy-duty and efficient and suitable for any environment (high temperature, explosion-proof, etc.); easy installation and maintenance; variable frequency speed regulation of speed; Bucket or C hook; the crane is equipped with all standard safety devices such as mobile limit switches, loading limits, etc., to ensure the safe operation of the crane.

    European Standard Double Girder Overhead Crane Parameter

    Mechanism

    Item

    Unit

    Result

    Lifting capacity

    ton

    5-350

    Lifting height

    m

    1-20

    Span

    m

    10.5-31.5

    Working environment temperture

    °C

    -25~40

    Speed

    Hoisting

    Main

    m/min

    0.84-9.5

    Aux.

    5.22-12.6

    crab

    5.8-38.4

    trolley

    17.7-78

    Working system


    A5-A6


    Comparison Of European Standard Double Girder Overhead Crane

    1. Overall height is 20%~25% lower than traditional cranes;
    2. Self-weight is lighter by 20%~30%;
    3. Max wheel load reduces 15%~20%;
    4. Smaller limiting size increases working scope;
    5. Light structure reduces the cost of workshops;
    6. Every component designed to be a standard series and interchangeable;

    European Standard Double Girder Overhead Crane Main Features

    1). Long Life Span: 30-50years;
    2). Easy for Installation and maintenance;
    3). Reasonable structure and strong rigidity;
    4). The speed can be frequency inverter speed control;
    5). Control method is cabin control or remote control;
    6). Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
    7). Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

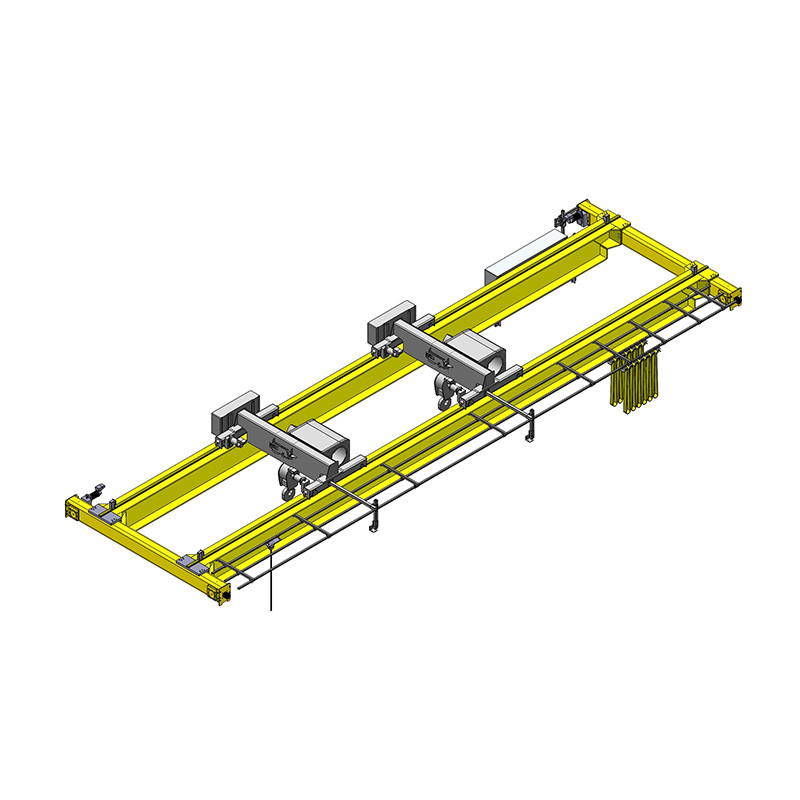

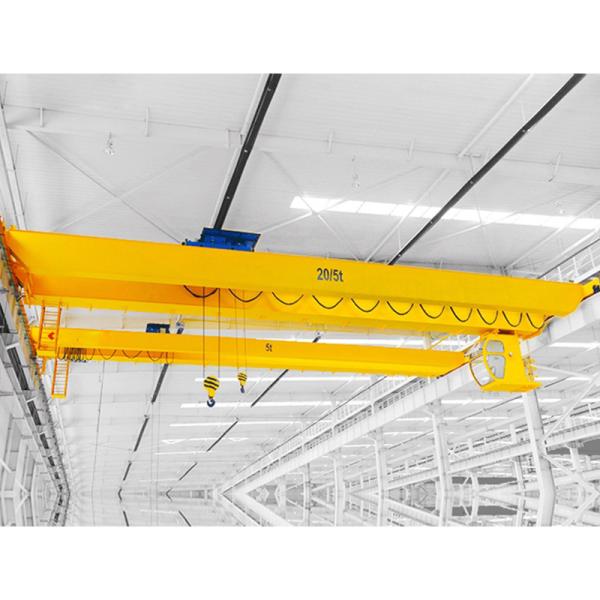

    European Standard Double Girder Overhead Crane Images

    European Industrial 1000KN Double Girder EOT Crane 10.5 - 31.5m Span
    European Industrial 1000KN Double Girder EOT Crane 10.5 - 31.5m Span


































    Quality European Industrial 1000KN Double Girder EOT Crane 10.5 - 31.5m Span for sale
