20 Ton LH Model Double Girder Overhead Travelling Crane

LH Model Double Girder Overhead Travelling Crane Introduction

The LH Type Electric Double Beam Electric Bridge Crane is designed and manufactured according to the national standard JB/T3695-2008 "Electric hoist bridge crane". It uses a fixed wire rope electric hoist as the lifting mechanism and is installed on the centrally driven double-track trolley, which is connected with the double-girder bridge. Matching double girder overhead crane. Similar in structure to the electric double-girder bridge crane, it is composed of four main components: bridge frame, trolley, cart and electric.Compared with the double-girder bridge crane, the LH Type Electric Double Beam Electric Bridge Crane has the advantages of compact size, low building headroom, light weight and small wheel pressure.

This product is mainly suitable for transfer, assembly, overhaul and loading and unloading operations in machining workshops, auxiliary workshops of metallurgical plants, warehouses, stockyards, power stations, etc. It can also replace ordinary double-girder overhead cranes for production workshops in light textile industry and food industry. The working type is light and intermediate, the working environment temperature is -20-40 ℃, and it is not suitable for flammable, explosive and corrosive medium environments.

LH Type Electric Double Beam Electric Bridge Crane has two forms of cab control and ground control. There are two types of operation room: open type and closed type, which can be divided into two types of left or right installation according to the actual situation. There are three types of entry directions: side face, end face and top, so as to meet the user's choice in different needs.

LH Model Double Girder Overhead Travelling Crane Parameter

LH Model Double Girder Overhead Travelling Crane Advantage

It includes motor, speed reducer, brake, coupling, wheels, coiling blocks.
No asbestos brake pad and brake block insert use card outfit, safe and reliable;
The speed reducer use hard-toothed surface reducer, compact structure, durable;
Trolley travelling use seperate drive;
Have high loading ability, long service life moving stable;
Equipped with the derailment prevention board;
Used for Angle round box, equipped with buffer device;
Modular design, meet customer needs.

LH Model Double Girder Overhead Travelling Crane Feature

1, Overhead traveling on the steel structure, normally in workshop, working duty from A4

2, Strong box type steel structure for crane.

3, Six direction action, to make sure the enough wide working area.

4, Full safety system as follows:

Weight overload protection

Emergency stop system

Over current protection,Short-circuit protection

Phase sequence protection

Zero position protection

Voltage loss protection

Limit switch and stopper for crane long traveling and cross traveling

Lifting overhigh and overlow limit switch

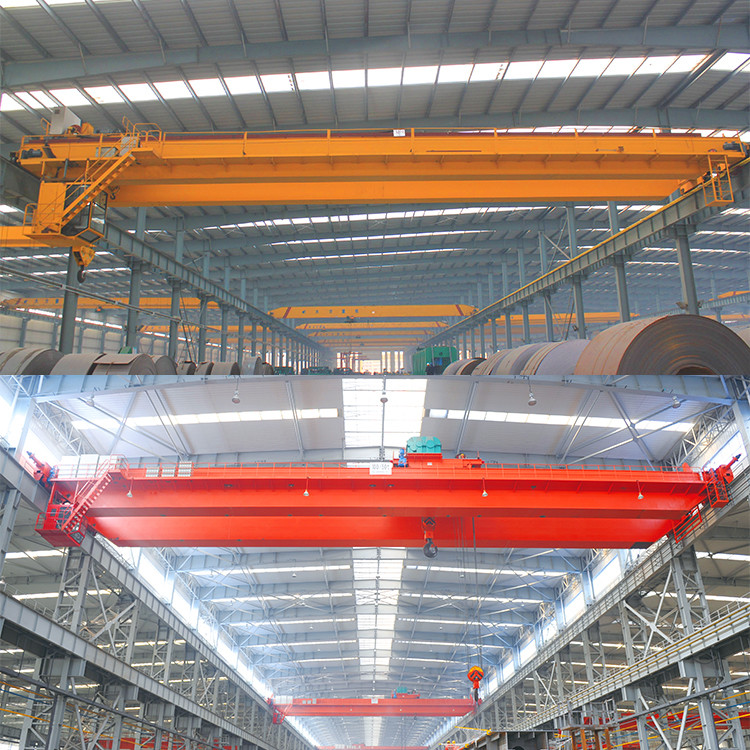

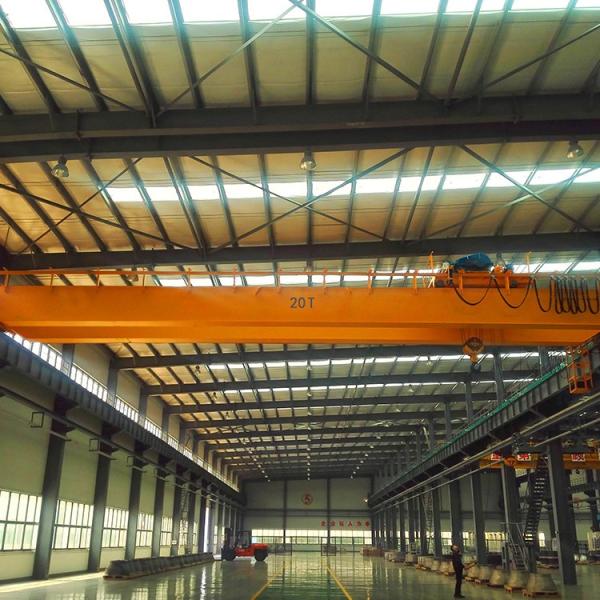

LH Model Double Girder Overhead Travelling Crane Images

Henan Yuntian Crane Co.,Ltd. located in crane hometown of China (cover more than 2/3 crane market in China), could supply you all kinds of industry cranes and other lifting equipment,more than 110 types, and capacity could be from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE, GOST, SGS, TUV, BV and so on.

Our Group have more than 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of RMB1.18 Billion, have more than 430 branches around the world and serving over 6,000 mid-to-high-end customers. more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, In order to manufacture out the best quality crane with high efficiency production, our group invest large number of high technique equipment (include more than 100sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment.

Meanwhile, we have one most experienced and professional team for oversea market, who are the earliest one to open the industry crane oversea market in China, now our team have been one famous leading flag for industry crane exporting in China, In addition, we could supply you the turn-key project includes installation, commissioning, training and so on.

We have exported our cranes to the Australia、Bangladesh、Iraq、Pakistan、Philippines、USA、Egypt、Peru、India、Turkmenistan、Singapore、Ethiopia、South Africa、Saudi Arabia、Malta、Albania、Ukraine、Vietnam、Kenya、Nigeria、UAE、Cameroon、Uruguay、Bahrain、Thailand、Kazakhstan、Germany、Sultan、Chile、Oman、Romania、Malaysia、Armenia、Jordan、Russia、Swaziland、Qatar、Brazil、Jordan、Columbia、Cameroon、Sri Lanka、Brunei、Indonesia and so on, total more than 100 countries, received good feedback from them, We will be very happy to make friends with you come from all of the world and hope to establish long-term good cooperation with each other.

Why Choose Us

We are differentiated by our established network of suppliers which allows us to be more cost effective. We provide a quality and reliable product and we are able to guarantee long term parts availability. With over 35 years of experience within the industry and act as the leader of the field for exporting, we have a following of loyal customers and offer personalised service. We have a huge and professional team working on exporting including sales team, technology team, document team, shipping team which will ensure provide a top service.

Key Highlights of our company:

1. ISO 9001:2015,CE,GOST,BV Approved Company

2. More than 3,500 sets of various advanced processing equipment (sets)

3. The Factory covers a total fabrication area of more than 1,620,000 Sq. Mtr

4. Total Manpower of more than 4500 employees

5. 420 service organizations around the world

6. Manufactures and installs more than 90000 sets complete cranes in 2020

7. A technical team composed of more than 200 senior engineers

8. Export to 120 countries around the world.
