    Casting Overhead Rolling Crane 280 Ton Yzs Four Girder

    Ask Lasest Price
    Brand Name : SGY
    Model Number : YZS
    Certification : GOST, SGS, TUV, BV
    Price : USD 5000.00-80000.00
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per year
    Delivery Time : Within 60days after deposit received.
    • Product Details
    • Company Profile

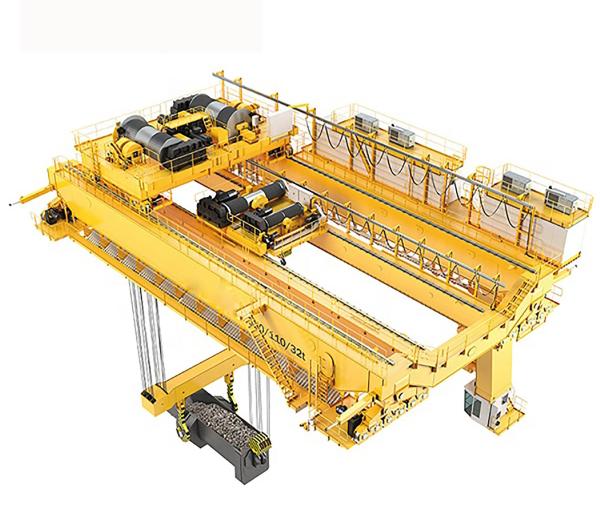

    Casting Overhead Rolling Crane 280 Ton Yzs Four Girder

    YZS Four Girder Casting Bridge Crane High Temperature Heavy Duty Crane


    Description


    YZS Four Girder Ladle crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting. Also we can choose the suitable speed under the customer requirement.


    The main structure of four beam foundry crane is designed with 4 girders and 6 rails. The highlights of this crane are integral processing technology and secondary assembly technology. For the first time assembly, the welding components sizes are fixed and adopt flat position welding to ensure the quality of welding seams; and the secondary assembly is to release welding stress before the integral processing of the bridge to ensure the stability and accuracy of product process precision. The two-times assembly technologies could maximally ensure the precision of gauge, diagonal and span, as well as users' site installation.During manufacture and installation, we have obtained valuable experiences to lay the foundation for manufacturing crane with more technology and complex structure.
    Technical parameter
    Capacity
    320/80 ton
    280/80 ton
    240/80 ton
    225/65 ton
    Span(m)
    24.5
    22
    22
    27
    Working Class
    A7
    A7
    A7
    A7
    Lifting height
    (Main hook) M
    28
    29
    25
    32
    Lifting height
    (Aux Hook) M
    32
    29
    27
    34
    Speed
    (Main Hook)m/min
    7.5
    12
    7
    11
    Speed
    (Aux Hook)m/min
    10
    10
    9.6
    11
    Speed
    (Main trolley)m/min
    29
    40
    35
    41
    Speed
    (Aux trolley)m/min
    39
    40
    38
    39.5
    Speed
    (Crane)m/min
    58
    80
    80
    84

    Working condition:


    1.Working tempreture:-10~+60°C,
    2.Work class:A7,
    3.Power Source:3ph,380V,50HZ or other under customer requirement.
    Safety feature:
    1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
    2.Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
    3.Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
    4.Safety hook latch used for avoiding the lifted material out off from the hook
    5.Voltage lower protection system


    Features:

    1.Very stable because of two lifting point on hanging beam of ladle hook through wirerope pulley.
    2.Very very safty to lift because every one hanging beam pulley have two pcs of wirerope to avoid the risk happened once one pc of wirerope damaged.
    3.Anti high temperature.
    4.Capacity is 125/32tons and up.
    5.Two sets of brake for each lifting point and 4sets of brake for the main lift.
    6, Emergency stop system
    7, Over current Protection
    8, Short-circuit Protection
    9, Phase sequence protection.
    10, High protection level IP54 IP55.
    11, Zero position protection.
    12, Voltage loss protection.
    13, Current overload protection.
    14, Two carts for two lift, main lift cart is up, aux lift cart is below, to finish the heavy duty working, and could aux hook could be on left and right of main hook.
