    DIN FEM design Double Girder Overhead Crane Equipment

    Ask Lasest Price
    Brand Name : SGY
    Certification : CE
    Price : USD 10000
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 50 work days
    • Product Details
    • Company Profile

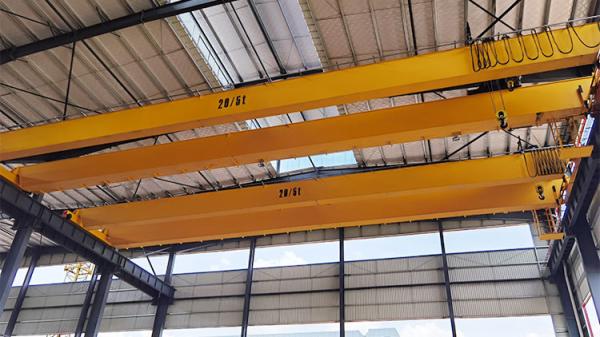

    DIN FEM design Double Girder Overhead Crane Equipment

    Hot sale European Standard Double Girder Overhead Crane

    Product Description

    The European-style Double Girder Overhead Crane is the most popular & common crane which is widely used in workshop, warehouse, etc. Its outstanding advantage is DIN/FEM design, light weight design, modular design, advanced manufacturing technology, high security, high reliability, low-energy & free-maintenance and intelligentize.
    European type double girder overhead crane are mainly consists of Girder frame, Crane travelling device, hoist as the lifting device and electrical parts, it is designed with working grade of A5~A8 according to the use frequency. Bridge adopts box welded structure, high degree of vertical and horizontal rigidity. It has a strong beam and a stable travelling mechanism; the emergency switch can stop any movement once any dangerous happened. It is rely on the bridge frame along the workshop rail direction moves forward-backward, the hoisting mechanism can be hoist type or winch type according to the lifting capacity and working demand. The trolley along the main beam direction moves left-right and the hook lift up-down.

    Specification
    Technical Specifications
    Lifting CapacitySpanLiftingWork DutyMain LiftingVice LiftingTrolley TravelingCrane TravelingTrack
    HeightSpeedSpeedSpeedSpeed
    tmmm/minm/minm/minm/min
    513.5~19.518A50.84~8.43.4~345.1~5138kg
    22.5~31.55~50
    513.5~19.518A50.78~7.83~305~5038kg
    22.5~31.55.2~52
    16/513.5~19.518/18A50.76~7.60.84~8.43.5~355.1~5143kg
    22.5~31.55.2~52
    20/513.5~19.518/18A50.6~60.84~8.43.5~355.1~5143kg
    22.5~31.55.2~52
    32/513.5~19.518/18A50.52~5.20.84~8.43.1~315.1~5143kg
    22.5~31.55.2~52
    Oct-5013.5~19.518/18A50.43~3.90.78~7.83.6~364.8~4843kg
    22.5~31.55.4~54
    Notes: Customizabl

    Two Lifting Mechanisms:

    European Electric HoistEuropean Hoisting Trolley


    Self weight lower 15-20%

    Lower price

    Wheel pressure lower 15~30%

    Height lower 20%~30%

    Sketch Drawing
