    25 ton Overhead Material Handling Equipment Electric Hoist Gantry Crane

    Ask Lasest Price
    Brand Name : SGY
    Certification : CE
    Price : USD 10000
    Payment Terms : L/C, T/T, Western Union, D/A, D/P, MoneyGram
    Delivery Time : 50 work days
    • Product Details
    • Company Profile

    25 ton Overhead Material Handling Equipment Electric Hoist Gantry Crane

    Hot sale25 ton Overhead Material Handling Equipment Electric Hoist Gantry Crane

    Introduction

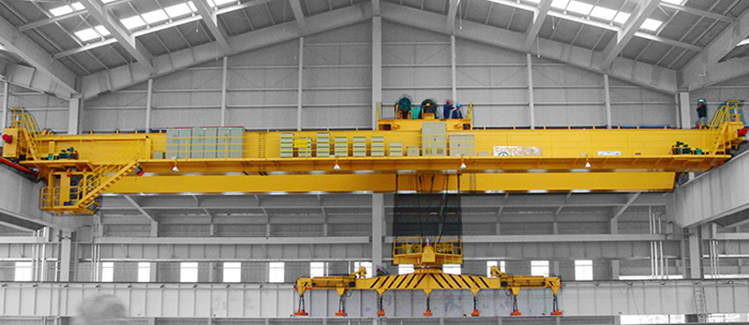

    Electric magnetic crane, It is special crane with electromagnetic disk, special used in metallury and mechanism factory load and unload metallic materials such as steel plate,scrap iron,and so on.

    It is an heavy duty crane with working grade A6, cabin control , crane weight including electromagnetic disk dead weight.


    QC model Double Girder Overhead Electromagnetic Crane, the main beam and end beam boxed type with ISO standard.Steel plate material Q235B/Q345B
    CNC cutting for complete steel plate, with high surface flatness and accuracy.
    National standard 24#38#43#adapted for cross travel rail.
    High quality automatic welding and NDT inspection for main welding lines.
    Impeller blasting Sa2.5 for complete girder after welding to eliminate welding stress.
    Epoxy zinc-rich painting, 2*2 with 140μm. Nice appearance and good gloss.
    Main girder and end carriage connected by welding as a whole structure, making the crane longer serving life and more durable.
    Reformative flat wheels and anti-friction bearing helping the long travel more smooth with littlenoise.
    Checkered plate, handrail (1050mm) and upright united together as maintenance platform
    Buffers derailment protectors equipped for safety crane travel.


    Safety is the most important issue for crane. To ensure the safety, the following safety devices are equipped in SGY crane.


    1. Weight overload protection device.
    2. Top quality long time bearing polyurethane materials buffer.
    3. Crane travelling limit switch.
    4. Voltage lower protection function.
    5. Emergency stop system.

    6. Current overload protection system and so on.


    Specification


    item

    value

    Feature

    Bridge Crane

    Applicable Industries

    Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Construction Works, Energy Mining

    Local Service Location

    France, Philippines, Saudi Arabia, Russia, Malaysia, Kenya, Argentina, Colombia, Romania, Nigeria

    Showroom Location

    Turkey, Germany, Philippines, Thailand, Morocco, Kenya, Argentina, Chile, Colombia, Romania, South Africa, Kazakhstan, Malaysia

    Video outgoing-inspection

    Provided

    Machinery Test Report

    Provided

    Marketing Type

    Hot Product 2021

    Warranty of core components

    1.5 years

    Core Components

    PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

    Condition

    New

    Max. Lifting Load

    (25+25)tons

    Max. Lifting Height

    Other

    Place of Origin

    China


    Henan

    Brand Name

    Yuntian

    Certification

    CE GOST ISO,TU

    Warranty

    1 Year


    Field maintenance and repair service

    Weight (KG)

    10000kg

    Crane type

    Rotation hanging beam magnetic Overhead Crane

    Crane feature

    magnetic Overhead Crane

    Color

    Customer Request

    Control model

    Wireless Remote Control.cabin Control

    Working Class

    A6-A7

    Lifting tool

    magnetic

    Rotation angle

    +180°--180°

    Capacity

    (5+5)-{25+25)ton

    Lifting height

    9.8-16m

    Packing

    Standard Packing
