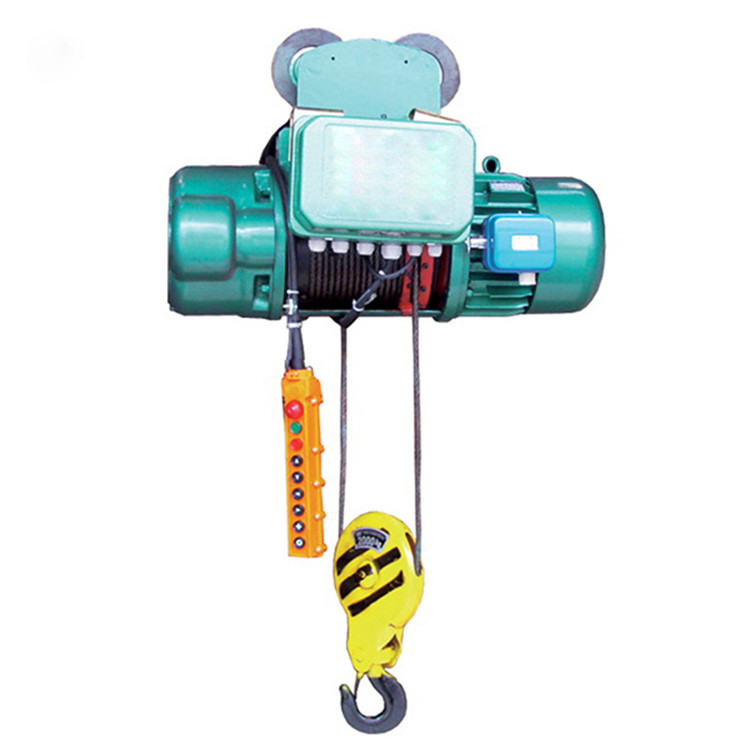

    Cd Model Wire Rope Electric Crane Hoist Small Sized Lifting Equipment

    Ask Lasest Price
    Brand Name : SGY
    Model Number : CD
    Certification : CE ISO GOST, SGS, TUV, BV
    Price : USD500.00-2000.00
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per year
    Delivery Time : Within 10days after deposit received.
    • Product Details
    • Company Profile

    Cd Model Wire Rope Electric Crane Hoist Small Sized Lifting Equipment

    Cd Model Wire Rope Electric Hoist


    Introduction


    CD model durable and safe marine crane electric hoist is small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. It has only one normal speed, which can satisfy normal application.


    Details


    CD Hoists are specially designed for higher lifts, faster hoisting & cross travel speeds & moveable on curved tracks can be manufactured accord demand.


    MOTORS: We offer hoist & crane duty Vz hour rated squirrel cage induction motors, confirming to IS 325 with comparatively higher H.P. and higher starting torque to reduce handling time. It is flange mounted to suit our design and with Class B or F insulation.


    ROPE DRUM: The rope drum is machined & grooved accurately, to ensure proper seating of wire rope in a proper layer. The drum is fitted with two heavy duty Ball / Roller bearings for smooth operation & longer life.


    ROPE GUIDE: The rope guide is made of special close grain castings & is specially designed and accurately machined to suit the grooves of the rope drum & prevents the rope from overriding & loosening. It also operates the limit switches provided as a safety feature to limit the over hoisting & over lowering of the hook. The guide is designed to ensure proper tensioning of the rope.


    GEAR BOX: Totally enclosed oil splash lubricated & dust free gear box is provided for smooth, trouble free & longer life. All gears are helical type and cut from alloy steel / low carbon steel on hobbing machines for achieving higher precision & a special process of gear toughening ensures smooth, silent, trouble free running of drive system. The pinions and gears are supported on anti-friction bearings on both ends.


    CONSTRUCTION: brake, motors, gear box & control panel are independent units and accessible easily. The complete hoist can be easily maintained by keeping it in its installed position, thus saving precious labor as well as down time and maintenance time.


    Technical Parameter


    ModelCD1
    CapacityTons0.250.51235101620
    Hoisting heightm3,6,96,9,12,18,24,309,12,18
    Hoisting speedm/min873.54
    Travel speedm/min2020/3020
    Wire ropeDia.(mm)3.64.87.711131517.519.5
    Spec.6 x196x37+FC

    Hoisting

    motor

    TypeTypeZD112-4ZD121-4ZD122-4ZD131-4ZD132-4ZD141-4ZD151-4ZD152-4
    Power

    Power

    (kW)

    0.40.81.534.57.51318.5

    Rotation

    speed

    Rotation

    speed

    (r/min)

    1380
    Current(A)1.252.44.37.611183041.7

    Traveling

    motor

    TypeTypeZDY110-4ZDY111-4ZDY112-4ZDY121-4
    Power

    Power

    (kW)

    0.060.20.40.80.8x2

    Rotation

    speed

    Rotation

    speed

    (r/min)

    14001380
    Current

    Current

    (A)

    0.30.721.252.44.3
    Power3PAC 380V 50HZ

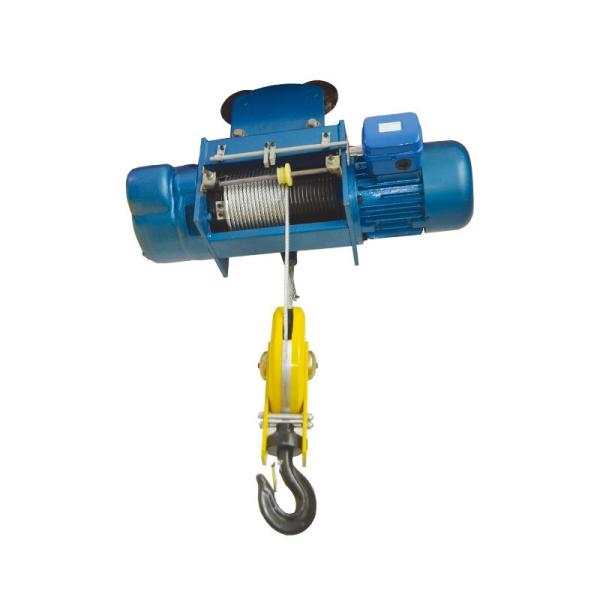

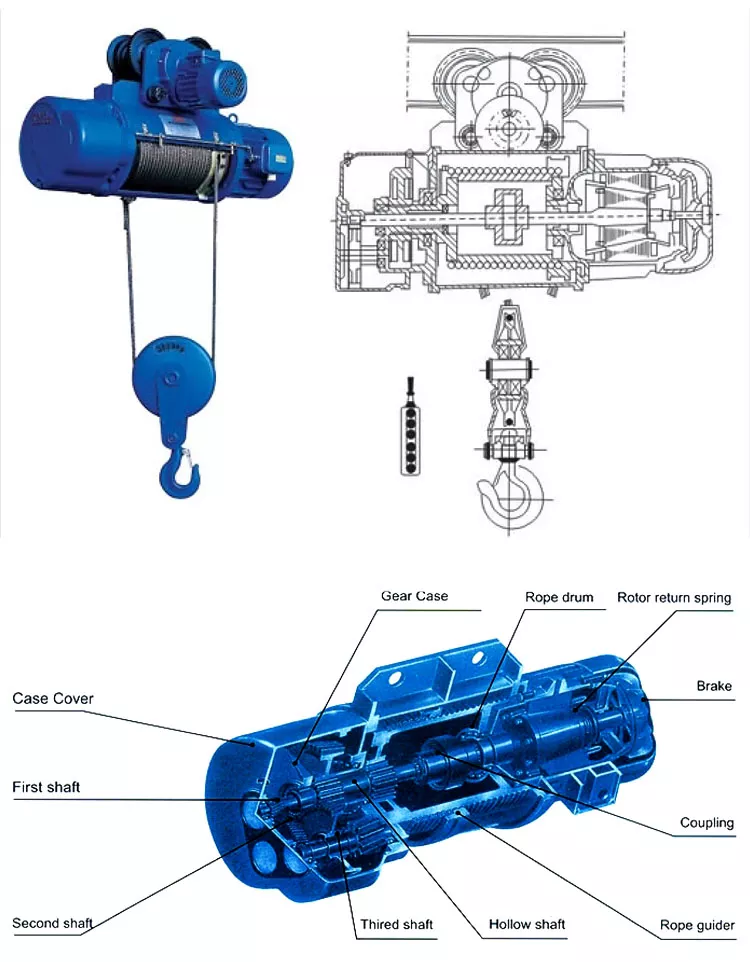

    Detailed Images



    Cd Model Wire Rope Electric Crane Hoist Small Sized Lifting Equipment

    Quality Cd Model Wire Rope Electric Crane Hoist Small Sized Lifting Equipment for sale
