    Column Or Pillar Swing Lever Electric Jib Crane 360 Degrees Q235

    Ask Lasest Price
    Brand Name : SGY
    Model Number : BZ
    Certification : CE ISO GOST, SGS, TUV, BV
    Price : USD4000.00-12000.00
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per year
    Delivery Time : Within 20days after deposit received.
    • Product Details
    • Company Profile

    Column Or Pillar Swing Lever Electric Jib Crane 360 Degrees Q235

    High Technical Electric Revolving 360 Degrees Column Or Pillar Swing Lever Jib Crane


    Introduction


    Jib crane is mainly used for boat and workshop. The leg is fixed on the floor, and work range is the circle of arm diameter. It is very convenient for loading and unloading the cargo in the small area, no need steel structure to support it, free standing. It is versatile, efficient and cost effective solutions for moving materials within an individual workstation, for transferring materials from work area to work area or for serving as auxiliary lifting devices under overhead tadano cranes.It can be handled easily by one man and have been thoroughly proven in factories, steel mills, muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
    Application:Workshop, warehouse, production line, etc.

    Main Features


    Economic price, flexible, space-saving, easy operation.
    1. Prices are ideal for low-cost lifting and handling goods effectively within a plant.
    2. It can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans.
    3. Our Swing level offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization.
    4. Classification of Swing level jib crane: Free standing jib crane; Wall mounted jib crane; Wall travelling jib crane; Articulating jib crane, etc.
    5. Free standing jib crane have a load capacity from 0.5t to 5t.
    6. It is useful where overhead hoists are neither practical nor feasible.
    7. This machine utilize 300 degree floor coverage, allowing unrestricted placement of machinery and equipment.
    Technical Parameters
    Model
    Unit
    BZD0.5
    BZD1
    BZD2
    BZD3
    BZD5
    Rated capacity
    t
    0.5
    1
    2
    3
    4
    Max. Lifting height
    m
    3
    5
    Max. working range
    m
    4
    5
    Max. turning radius
    m
    5
    4.5
    Max. lifting torque
    tm
    3
    5.2
    8.5
    12.2
    18.8
    Rotation angle
    °
    ≤360
    Lifting speed
    m/min
    8; 8/0.8
    Trolley travelling speed
    m/min
    20
    Rotation speed
    m/min
    1
    0.75
    0.7
    0.9
    0.6
    Weight
    kg
    1000
    1150
    1350
    3500
    4500

    Advantages of BZ type fixed mounted 3 ton pillar mounted jib crane for sale


    BZ type pillar jib crane has the advantages of unique structure, high safety, reliability, high working efficiency, energy saving and time saving, flexible operation, etc.

    • Compact Design

    The compact structure design makes pillar jib crane light in dead weight and excellent in work performance, improves space utilization rate and narrows hook operation distance to the maximum intently. The best material handling solution for your applications.

    • Smooth, Fast Loading, excellent performance

    Stepless frequency conversion control system is installed to the crane and trolley, which make pillar jib crane brake stably, locate accurately, perform reliably, and travel steadily, position quickly, and solve the problem of swing of loads.

    • Safer, Reliable, Using Free Maintenance Design

    Best technology is adopted which makes the frequent operations safe and efficient.

    Perfect braking systems can largely improves pillar jib crane safety and reliability, equipped with dustproof design, the working life can reach up to 1 million times.

    Hardened and polished tooth surface ensures the operation of crane smoothly without troubles.

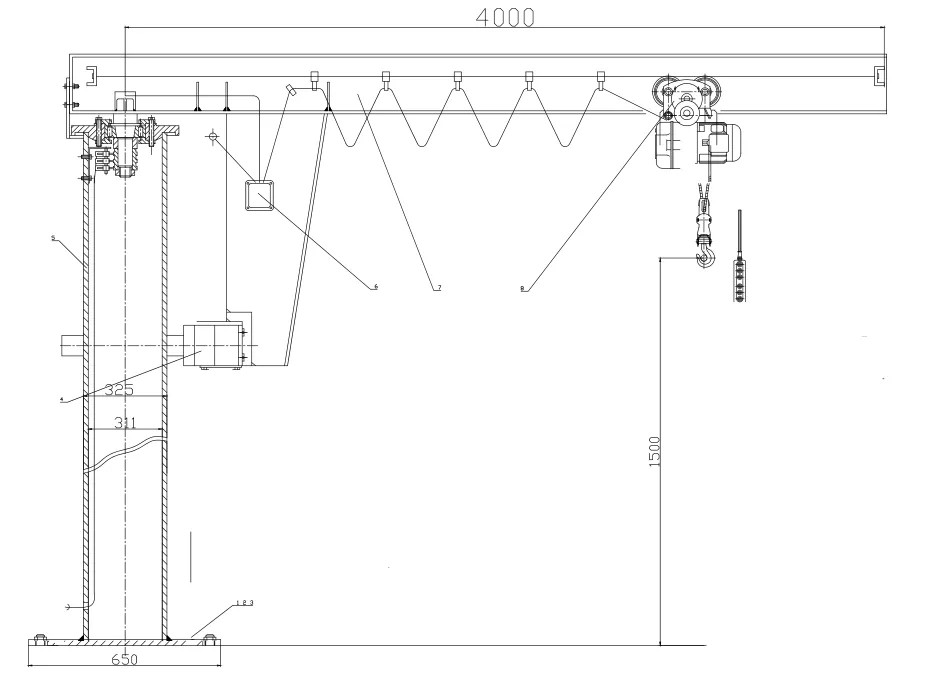

    Detailed Images


    Column Or Pillar Swing Lever Electric Jib Crane 360 Degrees Q235Column Or Pillar Swing Lever Electric Jib Crane 360 Degrees Q235
