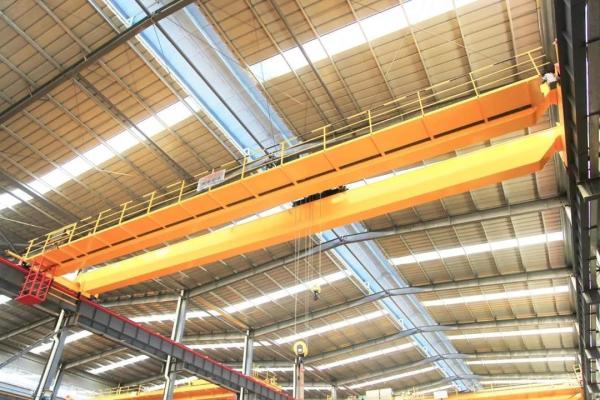

QY Model Double Girder Overhead Crane Introduction

QY type insulated double-girder bridge crane is suitable for factory workshops for smelting aluminum, magnesium and other electrolytic non-ferrous metal materials. The crane consists of a box-shaped bridge, a cart operating mechanism, a trolley, and electrical equipment.

In order to prevent the current on the live equipment from being transmitted to the crane through the hoisted components during the working process, endangering the life and equipment of the driver, several insulating devices are installed at the appropriate parts of the crane. The cranes are all heavy duty. To ensure lifting, the main lifting mechanism is equipped with double brakes. All mechanisms are operated in the driver's cab.

QY Model Double Girder Overhead Crane Technical Parameter

QY Model Double Girder Overhead Crane Specifications

(1) The bridge frame adopts box-shaped main beam, which is automatically welded by submerged arc welding.

(2) The electric conduction of the trolley adopts a new I-beam track cable conduction device, which is reliable.

(3) The hoisting mechanism can also be provided with another set of devices as required. Increase reliability.

(4) Standardization, serialization and generalization of parts and components.

(5) The operating room has a wide field of vision, and all the mechanisms are operated in the operating room, and the work operation is flexible.

QY Model Double Girder Overhead Crane Main Features

1. Overhead traveling on the steel structure, normally used in workshop, heavy working duty A7

2. Strong box type steel structure of crane.

3. Soft start, 3-5 speeds to operate, very stable to lift and running.

4. Six direction action, to make sure the enough wide working area.

5. Insulation function

6. Full safety system as follows:

Weight overload protection

Emergency stop system

Over current protection,Short-circuit protection

Phase sequence protection

Zero position protection

Voltage loss protection

Limit switch and stopper for crane long traveling and cross traveling

Lifting overhigh and overlow limit switch

QY Model Double Girder Overhead Crane Safety Feature

1. Weight overload protection device,
2. Top quality long time bearing polyurethane materials buffer,
3. Crane traveling limit switch, Voltage lower protection function,
4. Emergency stop system,
5. Current overload protection system and so on!

QY Model Double Girder Overhead Crane Detailed Images

Henan Yuntian Crane Co.,Ltd. located in crane hometown of China (cover more than 2/3 crane market in China), could supply you all kinds of industry cranes and other lifting equipment,more than 110 types, and capacity could be from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE, GOST, SGS, TUV, BV and so on.

Our Group have more than 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of RMB1.18 Billion, have more than 430 branches around the world and serving over 6,000 mid-to-high-end customers. more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, In order to manufacture out the best quality crane with high efficiency production, our group invest large number of high technique equipment (include more than 100sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment.

Meanwhile, we have one most experienced and professional team for oversea market, who are the earliest one to open the industry crane oversea market in China, now our team have been one famous leading flag for industry crane exporting in China, In addition, we could supply you the turn-key project includes installation, commissioning, training and so on.

We have exported our cranes to the Australia、Bangladesh、Iraq、Pakistan、Philippines、USA、Egypt、Peru、India、Turkmenistan、Singapore、Ethiopia、South Africa、Saudi Arabia、Malta、Albania、Ukraine、Vietnam、Kenya、Nigeria、UAE、Cameroon、Uruguay、Bahrain、Thailand、Kazakhstan、Germany、Sultan、Chile、Oman、Romania、Malaysia、Armenia、Jordan、Russia、Swaziland、Qatar、Brazil、Jordan、Columbia、Cameroon、Sri Lanka、Brunei、Indonesia and so on, total more than 100 countries, received good feedback from them, We will be very happy to make friends with you come from all of the world and hope to establish long-term good cooperation with each other.

Why Choose Us

We are differentiated by our established network of suppliers which allows us to be more cost effective. We provide a quality and reliable product and we are able to guarantee long term parts availability. With over 35 years of experience within the industry and act as the leader of the field for exporting, we have a following of loyal customers and offer personalised service. We have a huge and professional team working on exporting including sales team, technology team, document team, shipping team which will ensure provide a top service.

Key Highlights of our company:

1. ISO 9001:2015,CE,GOST,BV Approved Company

2. More than 3,500 sets of various advanced processing equipment (sets)

3. The Factory covers a total fabrication area of more than 1,620,000 Sq. Mtr

4. Total Manpower of more than 4500 employees

5. 420 service organizations around the world

6. Manufactures and installs more than 90000 sets complete cranes in 2020

7. A technical team composed of more than 200 senior engineers

8. Export to 120 countries around the world.
