Qy Model Insulation Type Double Girder Overhead Crane

QY Model Double Girder Overhead Crane Introduction

QY insulation double girder overhead crane is composed with girder frame, crane travel device, and electric trolley with lifting and traveling device. There are pave the rail for the trolley traveling on the main girders.

Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.

There is a full-view cabin under the main beam, and a combined console or a single control box is installed in the cabin. A side long ladder is assembled between the cabin and the mobile platform, and the main beam and the end frames on both sides are connected to the joint points in the middle.

QY Model Double Girder Overhead Crane Technical Parameter

QY Model Double Girder Overhead Crane Main Features

1. Overhead traveling on the steel structure, normally used in workshop, heavy working duty A6

2. Strong box type steel structure of crane.

3. Soft start, 3-5 speeds to operate, very stable to lift and running.

4. Six direction action, to make sure the enough wide working area.

5. Insulation function

Full safety system as follows

Weight overload protection

Emergency stop system

Over current protection,Short-circuit protection

Phase sequence protection

Zero position protection

Voltage loss protection

Limit switch and stopper for crane long traveling and cross traveling

Lifting overhigh and overlow limit switch

QY Model Double Girder Overhead Crane Working Condition

1. Working tempreture:-10~+60°C,
2. Work class:A6-A8,
3. Power Source:3ph,380V,50HZ or other under customer requirement.

QY Model Double Girder Overhead Crane Safety Feature

1. Weight overload protection device,
2. Top quality long time bearing polyurethane materials buffer,
3. Crane traveling limit switch, Voltage lower protection function,
4. Emergency stop system,
5. Current overload protection system and so on

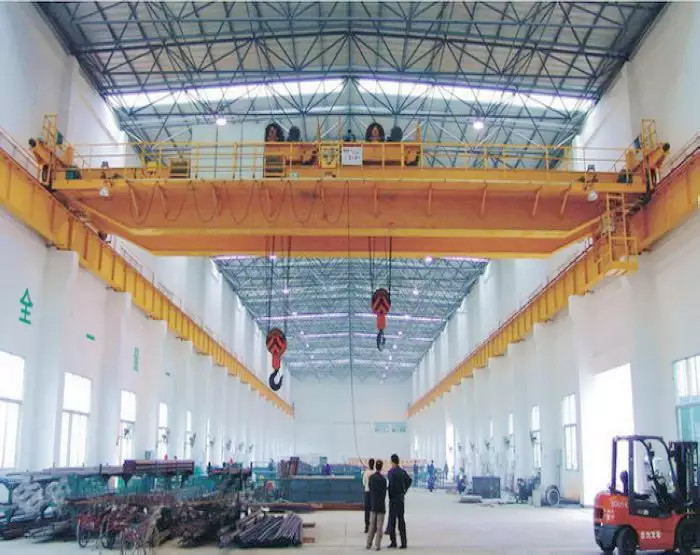

QY Model Double Girder Overhead Crane Detailed Images

Henan Yuntian Crane Co.,Ltd. located in crane hometown of China (cover more than 2/3 crane market in China), could supply you all kinds of industry cranes and other lifting equipment,more than 110 types, and capacity could be from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE, GOST, SGS, TUV, BV and so on.

Our Group have more than 4,500 employees, include one experienced and professional team for oversea market. We cover an area of 1,620,000 square meters, hold capital of RMB1.18 Billion, have more than 430 branches around the world and serving over 6,000 mid-to-high-end customers. more than 200 intermediate and senior engineers who focus on design and manufacture of our cranes, In order to manufacture out the best quality crane with high efficiency production, our group invest large number of high technique equipment (include more than 100sets of robots) which can independently accomplish all the processes, such as milling, digging, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, welding, testing and heat treatment.

Meanwhile, we have one most experienced and professional team for oversea market, who are the earliest one to open the industry crane oversea market in China, now our team have been one famous leading flag for industry crane exporting in China, In addition, we could supply you the turn-key project includes installation, commissioning, training and so on.

We have exported our cranes to the Australia、Bangladesh、Iraq、Pakistan、Philippines、USA、Egypt、Peru、India、Turkmenistan、Singapore、Ethiopia、South Africa、Saudi Arabia、Malta、Albania、Ukraine、Vietnam、Kenya、Nigeria、UAE、Cameroon、Uruguay、Bahrain、Thailand、Kazakhstan、Germany、Sultan、Chile、Oman、Romania、Malaysia、Armenia、Jordan、Russia、Swaziland、Qatar、Brazil、Jordan、Columbia、Cameroon、Sri Lanka、Brunei、Indonesia and so on, total more than 100 countries, received good feedback from them, We will be very happy to make friends with you come from all of the world and hope to establish long-term good cooperation with each other.
