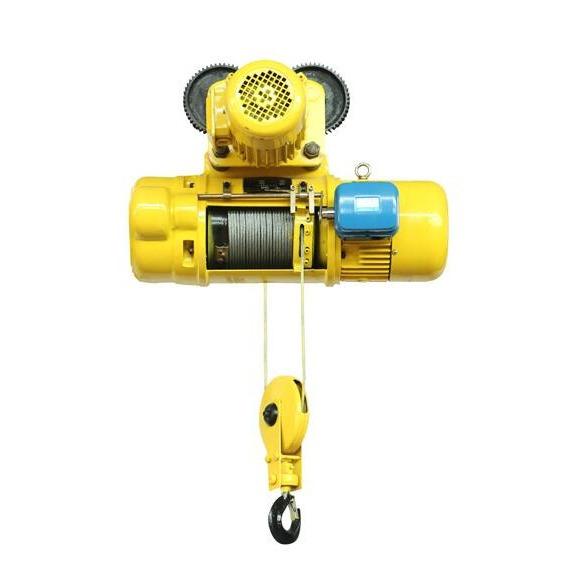

5 Ton Industrial Wire Rope Electric Hoist With Remote Control
Product Description:
CD1, MD1 type electric electric hoist with wire rope hold the
characteristic as compact structure, light dead weight and easy
operation. It can be installed on I-steel or working together with
single beam crane, double beam crane, jib crane and so on. CD1 type
is single-speed while MD1 type has dual speed. The fast speed is
for lifting, low speed can do precise loading and unloading,
mounding of sand box, maintenance of machine tools etc.
Advantages Of Wire Rope Hoist:
• CE approved.
• Lightweight robust construction.
• Low effort to lift maximum load.
• Fully forged hooks.
• High grade alloy load chain.
• Durable baked enamel paint protection.
• Overload protection device available upon request.
• Excellent after-sale serve.
Difference between CD and MD:
The hoisting speed of the CD type electric hoist is constant speed,
which can meet the general use requirements; the MD type electric
hoist has two hoisting speeds—normal speed and slow speed. When
working at a slow speed, it can meet the requirements of fine
operations such as precision loading and unloading, sand box
clamping, machine tool maintenance and so on. Therefore, the MD
type electric hoist is more widely used than the CD type electric
hoist.
Electric hoist, also known as electric hoist, electric hoist lift.
It retains the light and convenient characteristics of the chain
hoist, and improves the manual operation of the chain hoist and the
slow lifting speed.
The lifting weight of single speed wire rope electric hoist is
0.5-32 tons, the working level is M3 and M4.
Type | CD1, MD1 | |||||||||
Lifting weight(T) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 | |
Lifting height(m) | 3.6.9 | 6.9.12.18.24.30 | 9.12.18 | |||||||
Hoisting speed(m/min) | 8 0.8/8 | 7 0.7/7 | 3.5 0.35/5 | 4 | ||||||
Travelling speed(m/min) | 20 | 20/30 | 20 | |||||||
Wire rope | Dia | 3.6 | 4.8 | 7.7 | 11 | 13 | 15 | 15 | 1735 | 19.5 |
spec | 6x19 | 6 x 37 + 1 | ||||||||
Hoisting Motor | Type | ZD112-4 | ZD121-4 | ZD122-4 | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 | ZD152-4 | |
ZDS0.2/0.8 | ZDS0.2/1.5 | ZDS0.4/3.0 | ZDS0.4/4.5 | ZDS0.8/7.5 | ZDS1.5/13 | ZDS1.5/13 | ||||
Power(kw) | 0.4 | 0.8 0.2/8 | 1.5 0.2/5 | 3.0 0.4/3.0 | 4.5 0.4/4.5 | 7.5 0.8/7.5 | 13 1.5/13 | 13 1.5/13 | 18.5 | |
Rotate speed | 1380 (r/min) | |||||||||
Current(A) | 1.25 | 2.4 0.72/2.4 | 4.3 0.72/4.3 | 7.6 1.25/7.6 | 11 2.4/11 | 18 2.4/18 | 30 4.3/30 | 41.7 | ||
Travelling Motor | Type | ZDY110-4 | ZDY111-4 | ZDY112-4 | ZDY121-4 | |||||
Power(kw) | 0.06 | 0.2 | 0.4 | 0.8 | 0.8x2 | |||||
Rotate speed | 1400(r/min) | 1380(r/min) | ||||||||
Current(A) | 0.3 | 0.72 | 1.25 | 2.4 | 4.3 | |||||
NO of connecting | 120 | |||||||||
Working system | Intermediate FC=25% M3 | |||||||||
Power source | 380V 50HZ 3phs |
![]() |
