    LH Model Double Girder Overhead Crane 3 - 32 ton Capacity With Electric Hoist 31.5 m

    Ask Lasest Price
    Brand Name : SGY
    Model Number : LH
    Certification : CE ISO GOST, SGS, TUV, BV
    Price : USD4000.00-12000.00
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per year
    Delivery Time : Within 20days after deposit received.
    • Product Details
    • Company Profile

    LH Model Double Girder Overhead Crane 3 - 32 ton Capacity With Electric Hoist 31.5 m


    LH Model Double Girder Overhead Crane 3 - 32 Ton Capacity With Electric Hoist 31.5 M


    LH Model Double Girder Overhead Crane Introduction


    LH model double girder EOT crane has the advantages of compact shape dimension, low building headroom height, light weight,small wheel pressure and so on. It is suitable for transporting, assembling ,repairing and load; unload works in mechanical processing workshop,metallurgy auxiliary workshop, plant and so on. The temperature of working environment is -25℃~ 40℃, it is not allowed to use in environment of inflammable, explosive and corrosive medium.


    It is used together with the CD/MD/HC electric hoist. It is a double girder EOT crane, whose small car is moving on the railway of the main girder.


    LH Model Double Girder Overhead Crane Technical Parameter


    Item

    Result

    Lifting capacity

    3-32ton

    Lifting height

    6-30m

    Span

    7.5-31.5m

    Hook speed

    7(0.7/7)-8(0.8/8)m/min

    Trolley speed

    20-45 m/min

    Working grade

    A3-A5

    Working environment temperture

    -25~40°C

    Power source

    Three-phase 380V 50HZ

    Control mode

    Pendant, Remote control, Cabin control


    LH Model Double Girder Overhead Crane Safety device


    1. Traveling limit switch.

    2. Weight overload protection device.

    3. Lifting height limit device.

    4. Voltage lower protection function.

    5. Emergency stop function.

    LH Model Double Girder Overhead Crane Main Features

    * First class quality with competitive price
    * Compact design, optimal use of the work areas
    * Reasonable structure, favorable performance
    * Control the load easily and position the load exactly
    * Smooth starting and stopping
    * Superior safety and reliability
    * Low noise, commodious cabin and good view
    * Minimum and easy maintenance, excellent exchangeability for components
    * Saving electricity

    LH Model Double Girder Overhead Crane Advantages


    1. Reasonable structure

    2. Favorable performance

    3. Smooth starting and stopping

    4. Safe and reliable traveling

    5. Low noise, commodious cabin and good view

    6. Convenient maintenance, excellent exchangeability for parts and components

    7. Energy saving,reduce energy consumption

    8. Using transducer for travelling or traversing crane to realize step speed or stepless speed change

    9. Primer and finishing paint


    Attention


    Safety is the most important issue for cranes. To ensure the safety, it is prohibited to use the equipment in the combustible, explosive or corrosives environment. (Need explosion proof type for this).

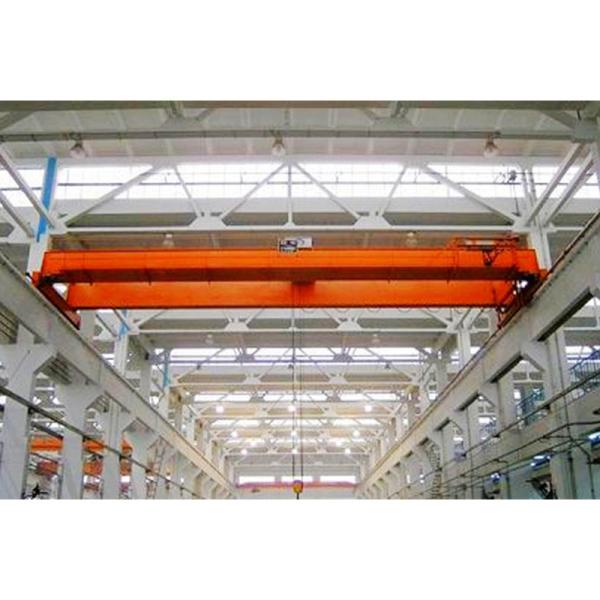

    LH Model Double Girder Overhead Crane Detailed Images


    LH Model Double Girder Overhead Crane 3 - 32 ton Capacity With Electric Hoist 31.5 mLH Model Double Girder Overhead Crane 3 - 32 ton Capacity With Electric Hoist 31.5 m
