    Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance

    Ask Lasest Price
    Brand Name : SGY
    Model Number : MH
    Certification : CE ISO GOST, SGS, TUV, BV
    Price : USD6000.00-32000.00
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per year
    Delivery Time : Within 20days after deposit received.
    • Product Details
    • Company Profile

    Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance


    Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance​

    MH Type Electric Hoist Gantry Crane Introduction

    The MH electric hoist gantry crane is used with CD, MD and other types of electric hoist. It is a small and medium-sized crane with rail operation. Its applicable crane capacity is 3-32 tons, applicable span is 12-50 meters, and working environment is -20 ~ 40. ° C.

    This product is a general-purpose using crane,which is mostly used for loading and unloading or grasping materials in open aerial and warehouses. The crane control mode have ground control and cabin control. The crane structural frame have truss type, box type, top box with truss leg type for choose

    Truss type MH type single girder gantry crane is light in dead weight and strong in wind resistance.

    MH Type Electric Hoist Gantry Crane Technical Parameter

    Rated load/ton

    5

    10

    16

    20

    Span/m

    10-40

    Lifting height/m

    30

    Working class

    A3/1bM

    Lifting speed/m/min

    8

    7

    3.5

    3.5

    Trolley running speed/m/min

    20

    20

    20

    20

    Crane running speed/m/min

    20

    20

    20

    20

    Dead weight/t

    10.5~37.5

    16.8~52

    18.9~65

    24.5~77


    Safe features of MH Type Electric Hoist Gantry Crane

    ✔ Crane traveling limit switch
    ✔ Weight overload protection device
    ✔ Lifting height limit device
    ✔ Voltage lower protection function
    ✔ Phase sequence protection function
    ✔ Emergency stop function
    ✔ Rain cover for outside hoist, driving units, electrical cubicle.
    ✔ Warning indicator: flashing lights and warning sound.
    ✔ Wireless infra-detector for anti-collusion


    MH Type Electric Hoist Gantry Crane Parameter
    1. Lifting capacity is 3.2ton to 32ton;
    2. Span is 12-30m;
    3. Lifting height is 9m;
    4. Working duty is A5;
    5. Working temperature is -20°C to + 50°C.

    MH Type Electric Hoist Gantry Crane Application
    1. material stocks area
    2. cement plant
    3. granite industry
    4. engineering industry
    5. construction industry
    6. shipping yards
    7. road sides
    8. mines plant
    9. steel plant
    10. concrete girder yard, etc


    MH Type Electric Hoist Gantry Crane Advantage

    1.Simple and compact structure, steady performance.
    2.Easy to install and high efficiency.
    3.Overload, low voltage protective device.
    4.Pendent control and remote control.
    5.Easy maintenance.

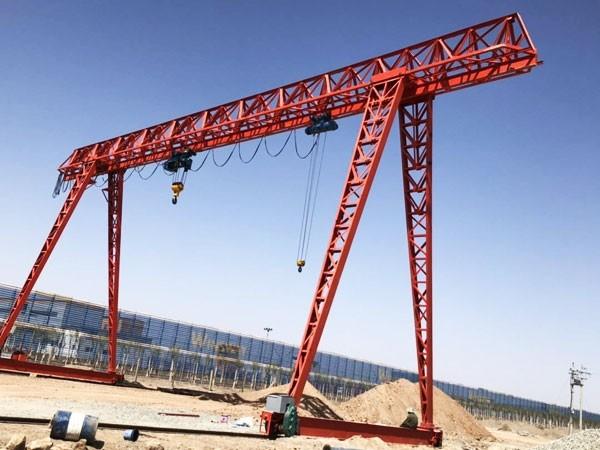

    MH Type Electric Hoist Gantry Crane Image
    Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
    Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
