    LX Single Girder Suspension Crane Max. Lifting Load 10 Ton 380Volt

    Ask Lasest Price
    Brand Name : SGY
    Model Number : LX
    Certification : CE ISO GOST, SGS, TUV, BV
    Price : USD4000.00-12000.00
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets per year
    Delivery Time : Within 20days after deposit received.
    • Product Details
    • Company Profile

    LX Single Girder Suspension Crane Max. Lifting Load 10 Ton 380Volt


    LX Single Girder Suspension Crane Max. Lifting Load 10 Ton 380Volt


    LX Single Girder Suspension Crane Description


    LX single-girder overhead cranes are widely used in factory warehouses, steel industry machine workshops, and material stocks all over the world to lift goods. Do not use this equipment in flammable, explosive or corrosive atmospheres. It has two operation modes on the ground or in the operating room, open and closed, and can be installed on the left or right according to the actual situation. The direction of the door has two forms: sideways and endways, to meet the user's choice of different user conditions. LX single girder overhead traveling cranes are designed to meet a wide range of modern industrial needs, offering excellent value for money without compromising performance.

    LX Single Girder Suspension Crane Technical parameter

    The general details of single beam suspension overhead crane

    Capacity

    0.5ton, 1ton, 2ton, 3ton, 5ton, 10ton

    Span(rail to rail center)

    3m~16m

    Lifting height

    6m, 9m, 12m, 18m, 24m, 30m

    Lifting speed(m/min)

    8(or 8/0.8), 7(or 7/0.7)

    Cross travelling speed(m/min)

    10, 20, 30

    Long travelling speed(m/min)

    10, 20, 30

    Duty Class

    A3/A4

    Power source

    380V, 50HZ, 3 phase (or other standard)

    Working temperature

    -20~40℃

    Control model

    Pendant pushbutton or remote control

    LX Single Girder Suspension Crane Features
    1. Computer-designed box girder, the whole length of the web plate is cut by NC with accurate deflection
    2. Low clearance trolley structure with reasonable sized hook, thus it has wide application scope.
    3. Arc or flat wheels, anti-friction bearings, honeycomb bumper, anti-derailment device.
    4. There-in-one motor drive, stepless speed control, hardened gear reducer, safety disk brake.
    5. Good driving performance, stepless speed regulation, smooth running
    6. Whole shot blasting Sa2.5 level after welding, release of internal stress, so that the main beam structure has best performance.
    7. Epoxy zinc-rich paint with oil film thickness 140μm.
    LX Single Girder Suspension Crane Advantage
    1. High quality with competitive price;

    2. Light structure,easy installation and maintenance;
    3. Widely used in different places for hoisting such as factories,warehouses and material yards;
    4. Reasonable structure,strong bearing capacity ;
    5. Low noise, soft starting and stopping ;
    6. Safer and more reliable operation ;
    7. Low cost maintenance, long working life;
    8. Strong box type,welding by machine hand.;
    9. Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
    10. Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running;
    11. Siemens main electric parts are used for durable and safe operation;
    12. Prohibited to use in the environment with inflammable,explosive and corrosive media.

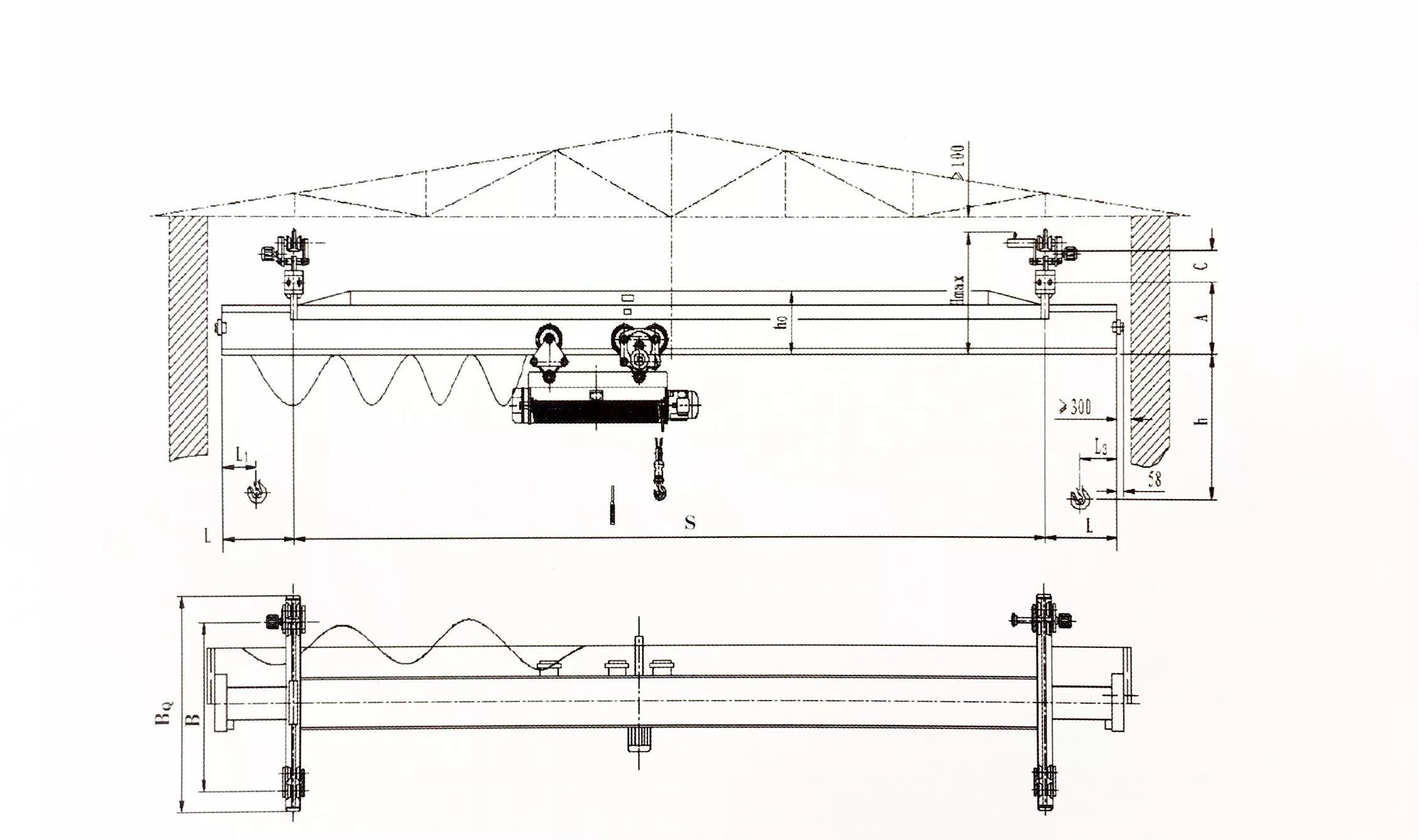

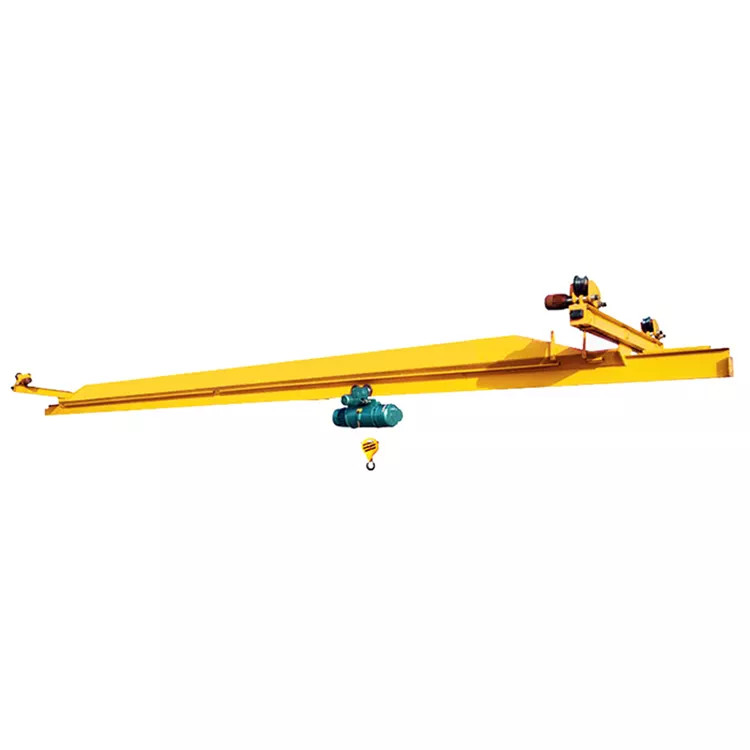

    LX Single Girder Suspension Crane Image


    LX Single Girder Suspension Crane Max. Lifting Load 10 Ton 380VoltLX Single Girder Suspension Crane Max. Lifting Load 10 Ton 380VoltLX Single Girder Suspension Crane Max. Lifting Load 10 Ton 380Volt
